MBRD10100CT - High Power Schottky Barrier Rectifier

Product Overview

📥 Download Datasheet

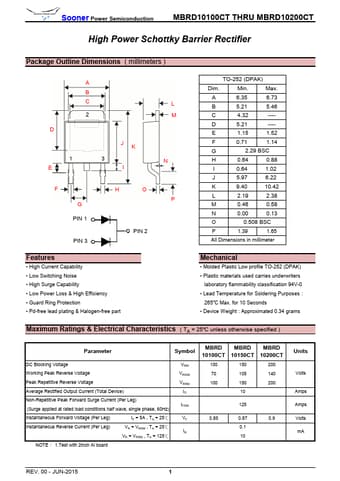

MBRD10100CT High Power Schottky Barrier Rectifier by Sooner Power Semiconduction - Datasheet Preview — Datasheet preview – MBRD10100CT

Datasheet Details

Part number	MBRD10100CT
Manufacturer	Sooner Power Semiconduction
File Size	636.51 KB
Description	High Power Schottky Barrier Rectifier
Datasheet	MBRD10100CT Datasheet
Additional preview pages of the MBRD10100CT datasheet.

Product details

Features

High Current Capability.
Low Switching Noise.
High Surge Capability.
Low Power Loss & High Efficiency.
Guard Ring Protection.
Pd-free lead plating & Halogen-free part P TO-252 (DPAK) Dim. Min. Max. A 6.35 6.73 B 5.21 5.46 C 4.32 ---D 5.21 ---E 1.15 1.52 F 0.71 1.14 G 2.29 BSC H 0.64 0.88 I 0.64 1.02 J 5.97 6.22 K 9.40 10.42 L 2.19 2.38 M 0.46 0.58 N 0.00 0.13 O 0.508 BSC P 1.39 1.65 All Dimensions in millimeter Mechanical.
Molded.
