MBRD10150CT

Schottky Barrier Rectifier

Littelfuse

MBRD10150CT Features

* Heat sink Common Cathode

* High junction temperature capability

* Guard ring for enhanced ruggedness and long term reliability

* Low forward voltage drop

* H igh frequency operation

* Common cathode configuration in compact surface mount TO-252 package

MBRD10150CT General Description

Littelfuse MBR series Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications by providing high temperature, low leakage and low VF products. It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes..

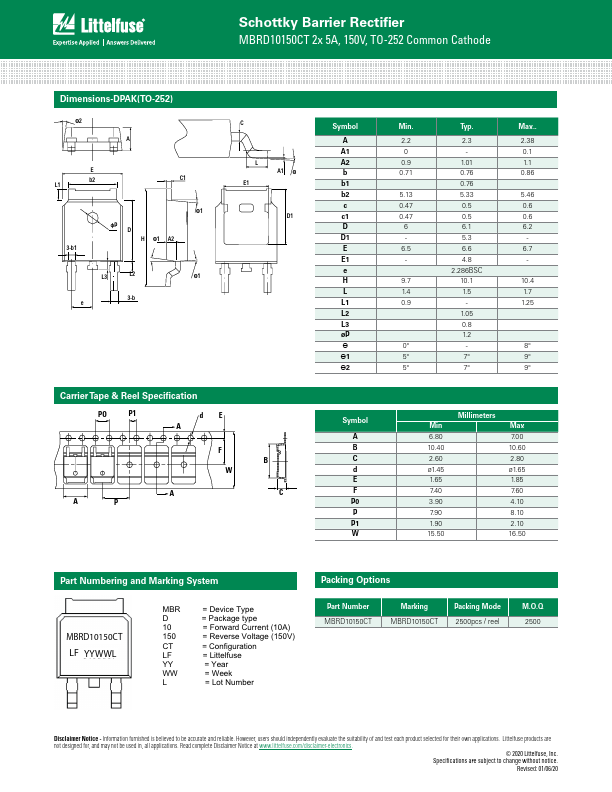

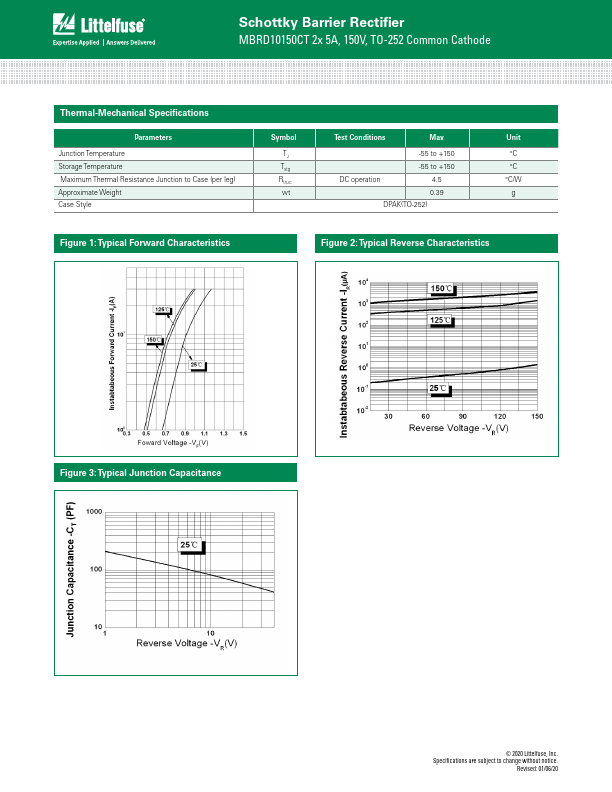

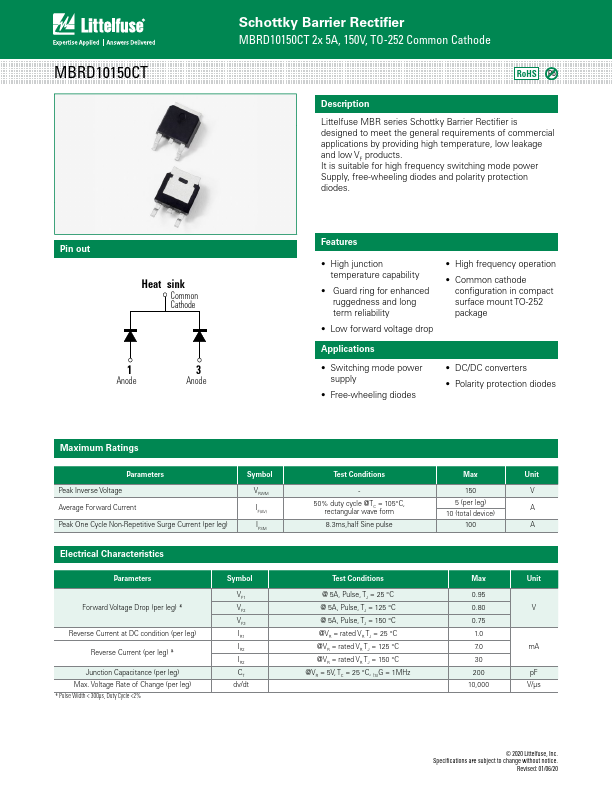

MBRD10150CT Datasheet (348.02 KB)
