MBRD10200CT, MBRD10200CT-SMC - SCHOTTKY RECTIFIER

MBRD10200CT Description

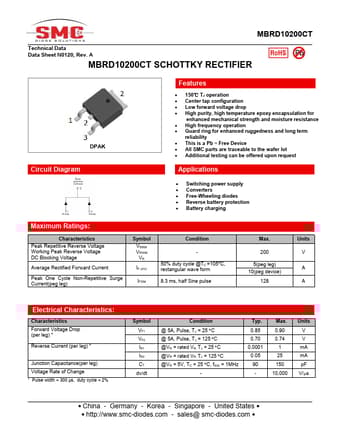

MBRD10200CT Technical Data Data Sheet N0120, Rev.A MBRD10200CT SCHOTTKY RECTIFIER DPAK Circuit Diagram .

MBRD10200CT Features

* 150℃ TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

MBRD10200CT Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Rep

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRD10200CT, MBRD10200CT-SMC. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRD10200CT, MBRD10200CT-SMC
Manufacturer
SMC-DIODE
File Size
272.20 KB
Datasheet
MBRD10200CT-SMC-DIODE.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBRD10200CT, MBRD10200CT-SMC.
Please refer to the document for exact specifications by model.
