MBRD1020S Datasheet - WON-TOP

MBRD1020S 10A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

MBRD1020S Features

* Schottky Barrier Chip

* Guard Ring Die Construction for Transient Protection

* High Surge Current Capability

* Low Power Loss, High Efficiency

* Ideally Suited for Automatic Assembly

* For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection

MBRD1020S Datasheet (41.21 KB)

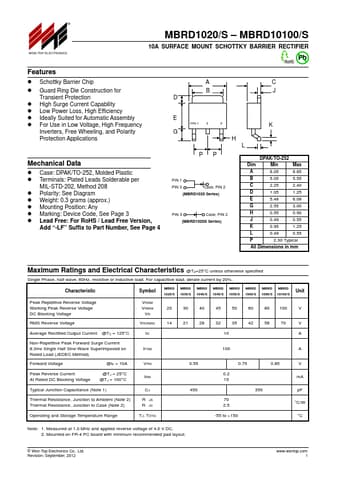

Preview of MBRD1020S PDF
MBRD1020S Datasheet Preview Page 2 MBRD1020S Datasheet Preview Page 3

Datasheet Details

Part number:

MBRD1020S

Manufacturer:

WON-TOP

File Size:

41.21 KB

Description:

10a surface mount schottky barrier rectifier.
