MBRD10100S Datasheet - Sooner

MBRD10100S Surface Mount Schottky Barrier Rectifier

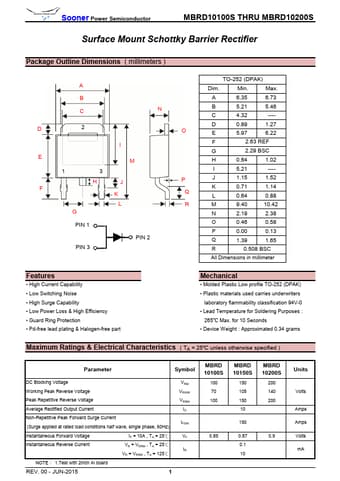

Sooner Power Semiconductor MBRD10100S THRU MBRD10200S Surface Mount Schottky Barrier Rectifier Package Outline Dimensions ( millimeters ) TO-252 (DPAK) A Dim. Min. Max. B A 6.35 6.73 C N B 5.21 5.46 C 4.32 D2 D 0.89 1.27 O E 5.97 6.22 E 1 F I M 3 HJ K F 2.63 REF G 2.29 BSC H 0.64 1.02 I 5.21 -P J 1.15 1.52 K 0.71 1.14 Q L 0.64 0.88 L G R M 9.40 10.42 N 2.19 2.38 PIN 1 PIN 3 PIN 2 O 0.46 0.58 P 0.00 0.13 Q 1.39 1.65 R 0.508 BSC All Dimensions in millim.

MBRD10100S Features

* High Current Capability

* Low Switching Noise

* High Surge Capability

* Low Power Loss & High Efficiency

* Guard Ring Protection

* Pd-free lead plating & Halogen-free part Mechanical

* Molded Plastic Low profile TO-252 (DPAK)

* Plast

MBRD10100S Datasheet (613.25 KB)

MBRD10100S Datasheet Preview — Preview of MBRD10100S PDF

Datasheet Details

Part number:

MBRD10100S

Manufacturer:

Sooner

File Size:

613.25 KB

Description:

Surface mount schottky barrier rectifier.
