MBRD2060CT, MBRD2040CT, High Power Schottky Barrier Rectifier

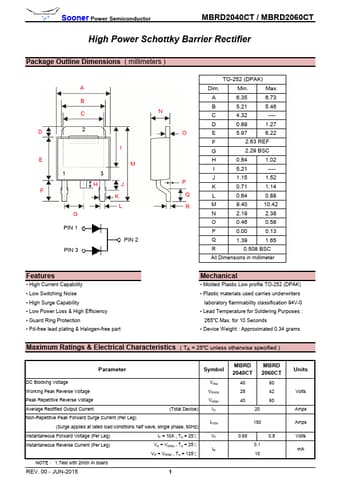

Sooner Power Semiconductor MBRD2040CT / MBRD2060CT High Power Schottky Barrier Rectifier Package Outline Dimensions ( millimeters ) TO-252 (DPAK) A Dim.
Min.
Max.
B A 6.35 6.73 B 5.21 5.46 C N C 4.32 D2 D 0.89 1.27 O E 5.97 6.22 F 2.63 REF I G 2.29 BSC E 1 F M 3 HJ K H 0.64 1.02 I 5.21 -J 1.15 1.52 P K 0.71 1.14 Q L 0.64 0.88 L G R M 9.40 10.42 N 2.19 2.38 PIN 1 O 0.46 0.58 P 0.00 0.13 PIN 2 Q 1.39 1.65 PIN 3 R 0.508 BSC All Dimensions in milli
MBRD2060CT Features
* High Current Capability
* Low Switching Noise
* High Surge Capability
* Low Power Loss & High Efficiency
* Guard Ring Protection
* Pd-free lead plating & Halogen-free part Mechanical
* Molded Plastic Low profile TO-252 (DPAK)
* Plast
