SB3060CT, SB3040CT High Power Schottky Barrier Rectifier

SB3060CT Description

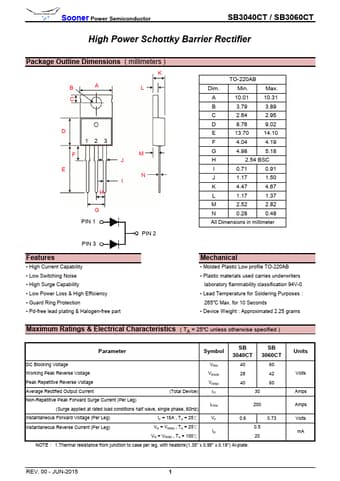

Sooner Power Semiconductor SB3040CT / SB3060CT High Power Schottky Barrier Rectifier Package Outline Dimensions ( millimeters ) K BA L C D 123.

SB3060CT Features

* High Current Capability
* Low Switching Noise
* High Surge Capability
* Low Power Loss & High Efficiency
* Guard Ring Protection
* Pd-free lead plating & Halogen-free part M N PIN 2 TO-220AB Dim. Min. Max. A 10.01 10.31 B 3.79 3.89 C 2.64 2.95 D 8.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB3060CT, SB3040CT. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB3060CT, SB3040CT
Manufacturer
Sooner
File Size
476.12 KB
Datasheet
SB3040CT-Sooner.pdf
Description
High Power Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: SB3060CT, SB3040CT.
Please refer to the document for exact specifications by model.
