SV2.1CD0004 Datasheet - Soshin

SV2.1CD0004 VOC

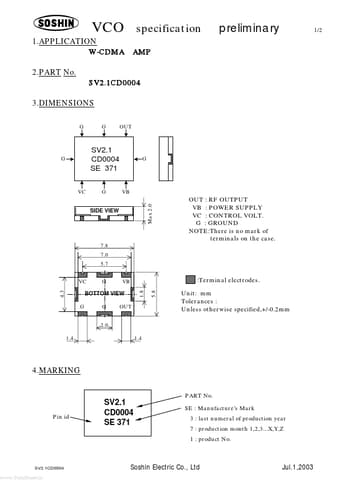

VCO 1.APPLICATION W-CDMA 2.PART No. specification AMP preliminary 1/2 SV2.1CD0004 3.DIMENSIONS G G OUT G œ VC SV2.1 CD0004 SE 371 G VB G SIDE VIEW 7.8 7.0 5.7 VC 4.3 G VB 1.8 5.8 OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT. G : GROUND NOTE:There is no mark of terminals on the case. Max 2.0 :Terminal electrodes. Unit: mm Tolerances : Unless otherwise specified,+/-0.2mm BOTTOM VIEW G G 2.0 1.4 OUT 1.4 4.MARKING PART No. Pin id œ SV2.1 CD0004 SE 371 SE :.
