SV2.45ER0002, SV245ER0002 Datasheet - Soshin

SV2.45ER0002 VOC

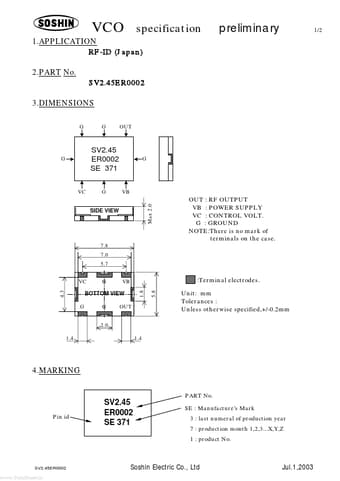

VCO 2.PART No. specification preliminary 1/2 1.APPLICATION RF-ID (Japan) SV2.45ER0002 3.DIMENSIONS G G OUT G œ VC SV2.45 ER0002 SE 371 G VB G SIDE VIEW 7.8 7.0 5.7 VC 4.3 G VB 1.8 5.8 OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT. G : GROUND NOTE:There is no mark of terminals on the case. Max 2.0 :Terminal electrodes. Unit: mm Tolerances : Unless otherwise specified,+/-0.2mm BOTTOM VIEW G G 2.0 1.4 OUT 1.4 4.MARKING PART No. Pin id œ SV2.45 ER0002 SE 37.

SV245ER0002_Soshin.pdf

SV2.45ER0002 Datasheet Preview — This datasheet PDF includes multiple part numbers: SV2.45ER0002, SV245ER0002. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SV2.45ER0002, SV245ER0002

Manufacturer:

Soshin

File Size:

103.01 KB

Description:

Voc.

Note:

This datasheet PDF includes multiple part numbers: SV2.45ER0002, SV245ER0002.
Please refer to the document for exact specifications by model.
