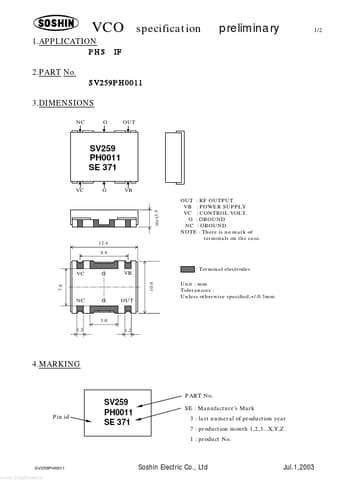

VCO 1.APPLICATION PHS 2.PART No. IF specification preliminary 1/2 SV259PH0011 3.DIMENSIONS NC G OUT œ VC SV259 PH0011 SE 371 G VB OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT. G : GROUND NC : GROUND NOTE : There is no mark of terminals on the case. 12.4 8.8 max3.5 SIDE VIEW VC 7.6 G VB 10.0 : Terminal electrodes Unit : mm Toleransces : Unless otherwise specified,+/-0.3mm BOTTOM VIEW NC G OUT 5.0 1.2 1.2 4.MARKING PART No. Pin id œ SV259 PH0011 SE 371 .
