SV275K07 Datasheet - Stackpole

Special Medium Voltage Leaded Varistors

SV275K07 Features

* Standard Varistor Types

* AC operating voltage (Vrms) from 60V to 680V

* DC operating voltage (Vdc) from 85V to 895V

* 6 model sizes equivalent to standard disc varistors from 5mm to 23mm

* Smaller nominal dimensions

* Broad range of current and energy handlin

SV275K07 General Description

The SV Series of transient voltage suppressors are epoxy-coated square or rectangular shaped leaded varistors with AC operating voltage ranging 60V to 680V. There are two versions of these varistors. The standard version of square varistors, featuring extremely high-current and high-energy capabilit.

SV275K07 Datasheet (88.60 KB)

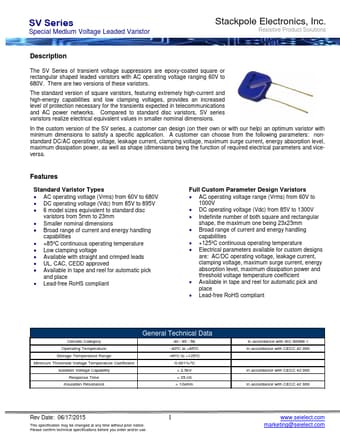

SV275K07 Datasheet Preview — Preview of SV275K07 PDF

Datasheet Details

Part number:

SV275K07

Manufacturer:

Stackpole

File Size:

88.60 KB

Description:

Special medium voltage leaded varistors.
