TCB10 - Ceramic Housed Current Sensing Resistor

Product Overview

Stackpole

📥 Download Datasheet

TCB10 Ceramic Housed Current Sensing Resistor by Stackpole - Datasheet Preview — Datasheet preview – TCB10

Datasheet Details

Part number	TCB10
Manufacturer	Stackpole
File Size	126.28 KB
Description	Ceramic Housed Current Sensing Resistor
Datasheet	TCB10 Datasheet
Note	This datasheet PDF includes multiple part numbers: TCB10, TCB3. Please refer to the document for exact specifications by model.

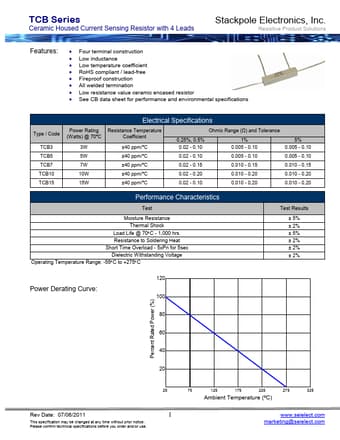

Additional preview pages of the TCB10 datasheet.

Product details

Features

Four terminal construction.
Low inductance.
Low temperature coefficient.
RoHS compliant / lead-free.
Fireproof construction.
All welded termination.
Low resistance value ceramic encased resistor.
See CB data sheet for performance and environmental specifications Type / Code TCB3 TCB5 TCB7 TCB10 TCB15 Power Rating (Watts) @ 70ºC 3W 5W 7W 10W 15W Electrical Specifications Resistance Temperature Coefficient ±40 ppm/ºC O.
