TCB4FL - Common Mode SMD Choke Coils

TCB4FL Description

SMD Coils Common Mode SMD Choke Coils - TCB4FL Series Common Mode SMD Choke Coil .

TCB4FL Applications

* Common mode filter, broad-band transformers; Impedance transformers, balun transformers, etc. . Common Mode SMD Choke Coil Config urations & Dimensions (unit: mm) Land Pattern AC D EJ H F BG L K Type A±0.3 B(max) C(max) D±0.3 TCB4FL 3.8 4.4 3.0 2.0 Note: Design as Customer’s Requested Speci

📥 Download Datasheet

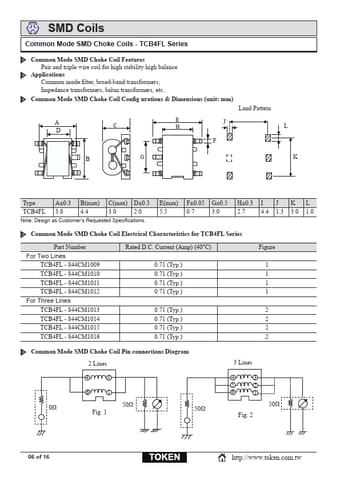

Preview of TCB4FL PDF
datasheet Preview Page 2

Datasheet Details

Part number
TCB4FL
Manufacturer
Token
File Size
310.06 KB
Datasheet
TCB4FL-Token.pdf
Description
Common Mode SMD Choke Coils
