TCB3 - Ceramic Housed Current Sensing Resistor

Product Overview

Stackpole

Part number	TCB3
Manufacturer	Stackpole
File Size	126.28 KB
Description	Ceramic Housed Current Sensing Resistor
Datasheet	TCB3 Datasheet

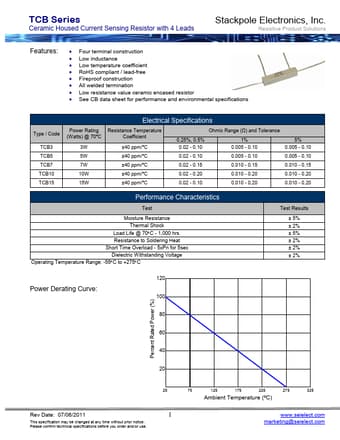

Additional preview pages of the TCB3 datasheet.

Four terminal construction.
Low inductance.
Low temperature coefficient.
RoHS compliant / lead-free.
Fireproof construction.
All welded termination.
Low resistance value ceramic encased resistor.
See CB data sheet for performance and environmental specifications Type / Code TCB3 TCB5 TCB7 TCB10 TCB15 Power Rating (Watts) @ 70ºC 3W 5W 7W 10W 15W Electrical Specifications Resistance Temperature Coefficient ±40 ppm/ºC O.
