EEH2017 Datasheet - Sumida Corporation

EEH2017 DC-DC CONVERTER

DC-DC CONVERTER (PIN) EEH2017 OUTLINE / 1. This is small size and high efficient up-down converter transformer which is 2 in 1 construction. (ex. SEPIC converter) 2. It is possible to output the high voltage which is hard to obtain with an ordinary inductor with sufficient accuracy. 3. It is available for a white LED back light drive. 1. 2in１SEPIC, ZETA。 2.、 。 3. LED。 DIMENSIONS (mm) EEH2017 24.0MAX. CONSTRUCTION 17.7MAX. 3.8 15.25 23. 0 M A X . ø 1 .0 Specifications Max. Operating .

EEH2017_SumidaCorporation.pdf

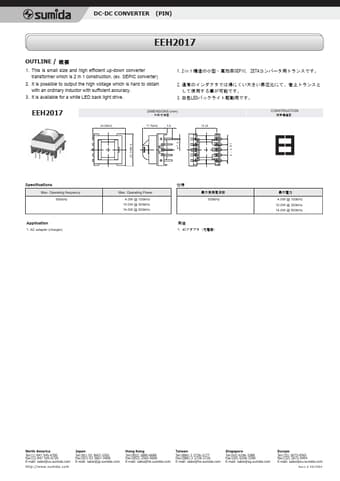

Preview of EEH2017 PDF

Datasheet Details

Part number:

EEH2017

Manufacturer:

Sumida Corporation

File Size:

235.39 KB

Description:

Dc-dc converter.
