EEH2513 - INVERTER

INVERTER M OUTLINE CCFL driving inverter transformer using an EE core which has a multiple secondary split winding space.

EP2513 26.0MAX.

DIMENSIONS (mm) 14.2MAX.

3.5 20.0 4.0 25.5MAX.

ø0.7 5-4.0 www.DataSheet4U.com K Specifications Product Type EP2513 K 2,000Vrms 8.0W EP2513 50kHz~300kHz 2,000Vrms 8.0W Frequency Range Max.

Open Voltage Max.

Lamp Wattage 50kHz~300kHz EEH2513 35.0MAX.

DIMENSIONS (mm) 14.0MAX.

3.5 25.5 4.0 26.3MAX.

5-4.0 K Specifications Product Type EEH2513 K

EEH2513 Features

* 1. High power, High reliability type (EP2513 : 8.0W, EEH2513 : 15.0W) 2. Winding terminals and user terminals are separated to prevent the wire from breaking. APPLICATION 1. Copy Machine 2. Light catalyst related 3. Amusement equipment 22 ø0.6 4.0 12.0 4.0 12.0

EEH2513_SumidaCorporation.pdf

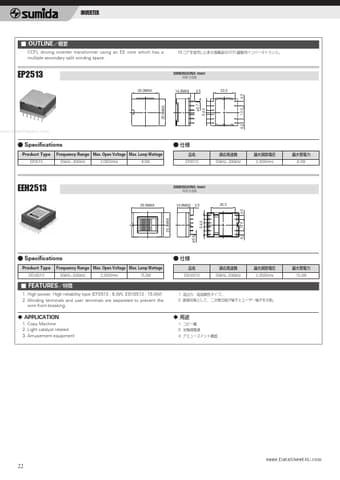

Preview of EEH2513 PDF

Datasheet Details

Part number:

EEH2513

Manufacturer:

Sumida Corporation

File Size:

174.59 KB

Description:

Inverter.
