CAS10D25 Datasheet - Sumida

CAS10D25, LF receiver antenna

LF Receiver Antenna CAS10D25 Dimension - [mm] RoHS 4 5.5 .
LF receiver antenna for X/Y axis. Covered by over-molding. Low profile. L W H: 10.

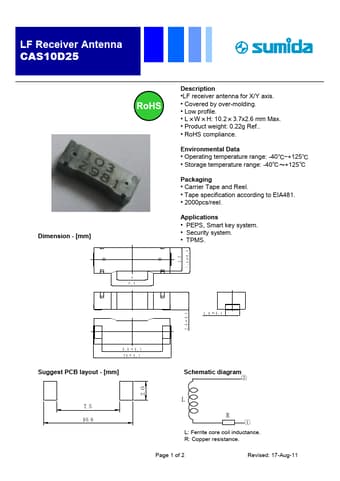

datasheet Preview Page 1 from Datasheet4u.com

CAS10D25-Sumida.pdf

CAS10D25 Datasheet Preview — Preview of CAS10D25 PDF

Datasheet Details

Part number:

CAS10D25

Manufacturer:

Sumida

File Size:

113.23 KB

Description:

LF receiver antenna

Applications

* PEPS, Smart key system.
* Security system.
* TPMS. 3.3 0.1 3.6± 0.1 1.8±0.1 2.5± 8.0±0.2 10±0.2 Suggest PCB layout - [mm] 7.5 10.6 2.0 ②Schematic diagram L R① L: Ferrite core coil inductance. R: Copper resistance. Page 1 of 2 Revised: 17-Aug-11 LF Receiver Antenna
