CAS13D31 Datasheet - Sumida

CAS13D31 LF receiver antenna

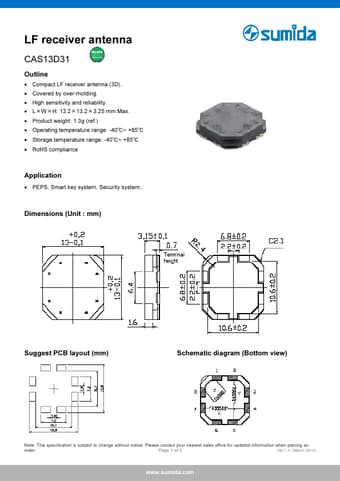

LF receiver antenna CAS13D31 Outline Compact LF receiver antenna (3D). Covered by over-molding. High sensitivity and reliability. L×W×H: 13.2×13.2×3.25 mm Max. Product weight: 1.3g (ref.) Operating temperature range: -40℃~ +85℃ Storage temperature range: -40℃~ +85℃ RoHS compliance Application PEPS, Smart key system. Security system.. Dimensions (Unit : mm) Suggest PCB layout (mm) Schematic diagram (Bottom.

CAS13D31-Sumida.pdf

Preview of CAS13D31 PDF
CAS13D31 Datasheet Preview Page 2

Datasheet Details

Part number:

CAS13D31

Manufacturer:

Sumida

File Size:

134.89 KB

Description:

Lf receiver antenna.
