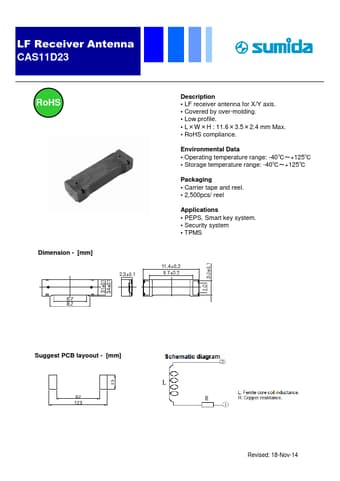

CAS11D23 Datasheet, Antenna, Sumida

PDF File Details

Part number:

CAS11D23

Manufacturer:

Sumida

File Size:

36.23kb

Download:

📄 Datasheet

Description:

Lf receiver antenna.

LF receiver antenna for X/Y axis.

Covered by over-molding.

Low profile.

L×W×H : 11.6×3.5×2.4

CAS11D23 Application

• Applications
• PEPS, Smart key system.
• Security system
• TPMS Suggest PCB layoout - [mm] Revised: 18-Nov-14 LF Receiver
