CDEP15D90T150NP-100MC-100

Low-Profile High Current Power Inductor

CDEP15D90T150NP-100MC-100 General Description


* Inductor for high withstand voltage (DC 120V) and large current
* Magnetically shielded
* Qualified AEC-Q200
* Operating temperature range: - 40°C～+150°C (including coil’s self temperature rise) Applications
* LED Head light for Automobile
* ECU
* Automotive and other .

CDEP15D90T150NP-100MC-100 Datasheet (657.84 KB)

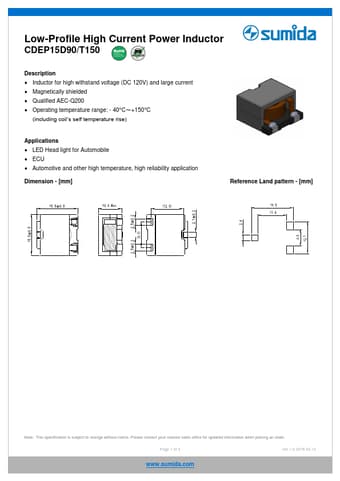

Preview of CDEP15D90T150NP-100MC-100 PDF

Datasheet Details

Part number:

CDEP15D90T150NP-100MC-100

Manufacturer:

Sumida

File Size:

657.84 KB

Description:

Low-profile high current power inductor.
