CDEP15D90T150NP-150MC-125, CDEP15D90T150 Datasheet - Sumida

CDEP15D90T150NP-150MC-125 Low-Profile High Current Power Inductor

* Inductor for high withstand voltage (DC 120V) and large current * Magnetically shielded * Qualified AEC-Q200 * Operating temperature range: - 40°C～+150°C (including coil’s self temperature rise) Applications * LED Head light for Automobile * ECU * Automotive and other .

CDEP15D90T150-Sumida.pdf

This datasheet PDF includes multiple part numbers: CDEP15D90T150NP-150MC-125, CDEP15D90T150. Please refer to the document for exact specifications by model.

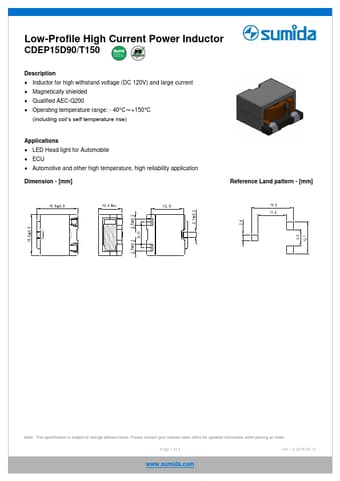

CDEP15D90T150NP-150MC-125 Datasheet Preview Page 2 CDEP15D90T150NP-150MC-125 Datasheet Preview Page 3

Datasheet Details

Part number:

CDEP15D90T150NP-150MC-125, CDEP15D90T150

Manufacturer:

Sumida

File Size:

657.84 KB

Description:

Low-profile high current power inductor.

Note:

This datasheet PDF includes multiple part numbers: CDEP15D90T150NP-150MC-125, CDEP15D90T150.
Please refer to the document for exact specifications by model.
