CDEP15D90T150NP-150MC-100, CDEP15D90T150 Low-Profile High Current Power Inductor

CDEP15D90T150NP-150MC-100 Description

Low-Profile High Current Power Inductor CDEP15D90/T150 .
Inductor for high withstand voltage (DC 120V) and large current. Magnetically shielded. Qualified AEC-Q200. Operating temperature.

CDEP15D90T150NP-150MC-100 Applications

* LED Head light for Automobile
* ECU
* Automotive and other high temperature, high reliability application Dimension - [mm] Reference Land pattern - [mm] 15.5±0.5 10.0 Max. (12.0) 16.5 11.4 2.1±0.2 2.4 2.5±0.2 6.5 12.7 (9.6) 15.5±0.5 2.5±0.2 Note： This specification is subje

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CDEP15D90T150NP-150MC-100, CDEP15D90T150. Please refer to the document for exact specifications by model.

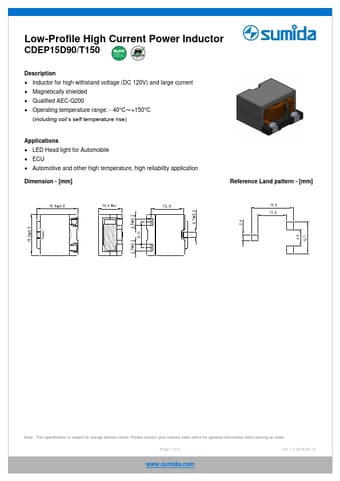

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CDEP15D90T150NP-150MC-100, CDEP15D90T150
Manufacturer
Sumida
File Size
657.84 KB
Datasheet
CDEP15D90T150-Sumida.pdf
Description
Low-Profile High Current Power Inductor
Note
This datasheet PDF includes multiple part numbers: CDEP15D90T150NP-150MC-100, CDEP15D90T150.
Please refer to the document for exact specifications by model.
