RD30FM, RD3.0FM - SURFACE MOUNT SILICON ZENER DIODES

SunMate

📥 Download Datasheet

RD30FM Datasheet Preview — This datasheet PDF includes multiple part numbers: RD30FM, RD3.0FM. Please refer to the document for exact specifications by model.

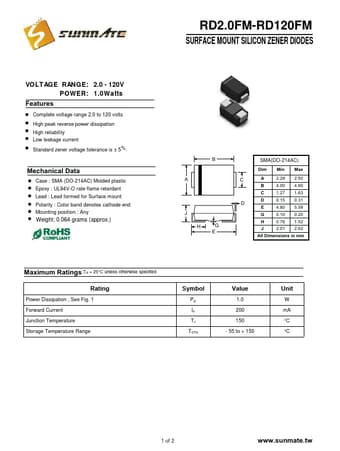

datasheet Preview Page 2

Datasheet Details

Part number: RD30FM, RD3.0FM
Manufacturer: SunMate
File Size: 156.37 KB
Datasheet: RD3.0FM-SunMate.pdf
Description: SURFACE MOUNT SILICON ZENER DIODES
Note: This datasheet PDF includes multiple part numbers: RD30FM, RD3.0FM.
Please refer to the document for exact specifications by model.

RD30FM Product details

Features

Complete voltage range 2.0 to 120 volts.
High peak reverse power dissipation.
High reliability.
Low leakage current.
Standard zener voltage tolerance is ± 5%. Mechanical Data.
Case : SMA (DO-214AC) Molded plastic.
Epoxy : UL94V-O rate flame retardant.
Lead : Lead formed for Surface mount.
Polarity : Color band denotes cathode end.
Mounting position : Any.
Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29.
