TPHWEF162014H, TPHEFD151711H Datasheet - Sunlord

TPHWEF162014H Power Transformer

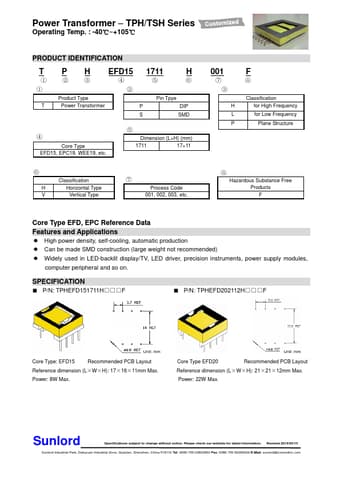

Power Transformer TPH/TSH Series Operating Temp. : -40℃~+105℃ PRODUCT IDENTIFICATION TPH ①②③ EFD15 1711 ④⑤ H ⑥ ①② Product Type T Power Transformer Pin Tpye P DIP S SMD ④ Core Type EFD15, EPC19, WEE19, etc. ⑤ Dimension (L×H) (mm) 1711 17×11 ⑥ H V Classification Horizontal Type Vertical Type ⑦ Process Code 001, 002, 003, etc. 001 ⑦ ③ H L P F ⑧ Classification for High Frequency for Low Frequency Plane Structure ⑧ Hazardous Substance Free Products F Core Type EFD, EPC R.

TPHWEF162014H Features

* and Applications z High power density, self-cooling, automatic production z Can be made SMD construction (large weight not recommended) z Widely used in LED-backlit display/TV, LED driver, precision instruments, power supply modules, computer peripheral and so on. SPECIFICATION

* P/N: TPHEFD151

TPHEFD151711H-Sunlord.pdf
