TPH0505D Datasheet - TOPPOWER

TPH0505D 2W 3KVDC Isolated Single & Dual Output DC/DC Converters

2W 3KVDC Isolated Single & Dual Output DC/DC Converters The TPH series are miniature, isolated 2W DC/DC converters in a SIP and DIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to offer.

TPH0505D Features

* RoHS compliant Efficiency up to 86% Power density up to 1.44W/cm3 Operating temperature: -40ºC to 105ºC Power sharing on output Dual output from a single input rail 3KVDC isolation UL 94V-0 package material Industry standard pinout Input voltage:3.3V,5V,12V,15V, 24V, 48V Output voltage: ±5V,±

TPH0505D-TOPPOWER.pdf

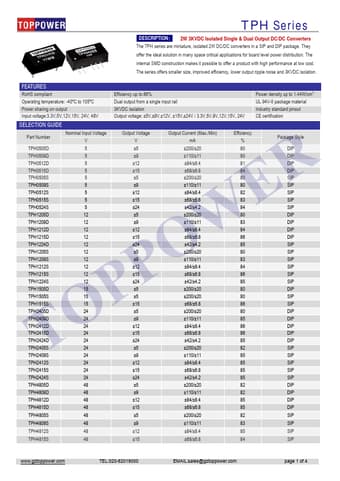

Preview of TPH0505D PDF
TPH0505D Datasheet Preview Page 2 TPH0505D Datasheet Preview Page 3

Datasheet Details

Part number:

TPH0505D

Manufacturer:

TOPPOWER

File Size:

593.62 KB

Description:

2w 3kvdc isolated single & dual output dc/dc converters.
