1N6263 - SMALL SIGNAL SCHOTTKY DIODE

Sunmate

📥 Download Datasheet

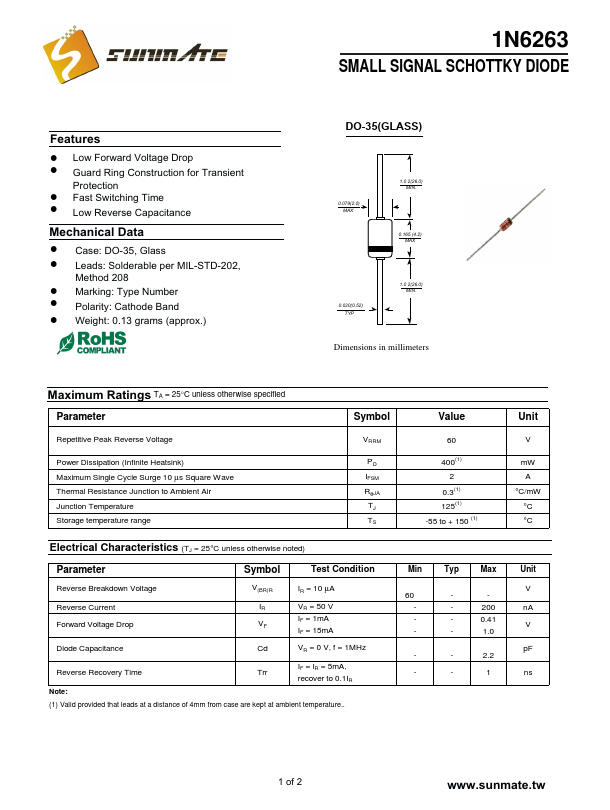

1N6263 Datasheet Preview — Preview of 1N6263 PDF

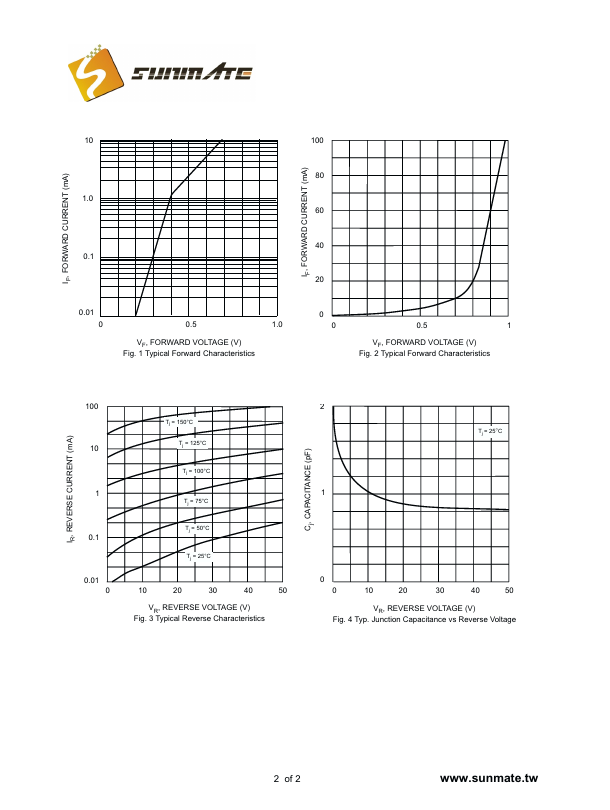

datasheet Preview Page 2

Datasheet Details

Part number	1N6263
Manufacturer	Sunmate
File Size	326.81 KB
Description	SMALL SIGNAL SCHOTTKY DIODE
Datasheet	1N6263-Sunmate.pdf

1N6263 Product details

Features

! Low Forward Voltage Drop ! Guard Ring Construction for Transient Protection ! Fast Switching Time ! Low Reverse Capacitance Mechanical Data ! Case: DO-35, Glass ! Leads: Solderable per MIL-STD-202, Method 208 ! Marking: Type Number ! Polarity: Cathode Band ! Weight: 0.13 grams (approx. ) DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings TA = 25°C unless otherwise specified Parameter Repetitive Peak Reve.
