BAV101, BAV100 SURFACE MOUNT FAST SWITCHING DIODE

Sunmate

Description

BAV100 - BAV103 SURFACE MOUNT FAST SWITCHING DIODE .

📥 Download Datasheet

BAV101 Datasheet Preview — This datasheet PDF includes multiple part numbers: BAV101, BAV100. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BAV101, BAV100
Manufacturer: Sunmate
File Size: 2.01 MB
Datasheet: BAV100-Sunmate.pdf
Description: SURFACE MOUNT FAST SWITCHING DIODE
Note: This datasheet PDF includes multiple part numbers: BAV101, BAV100.
Please refer to the document for exact specifications by model.

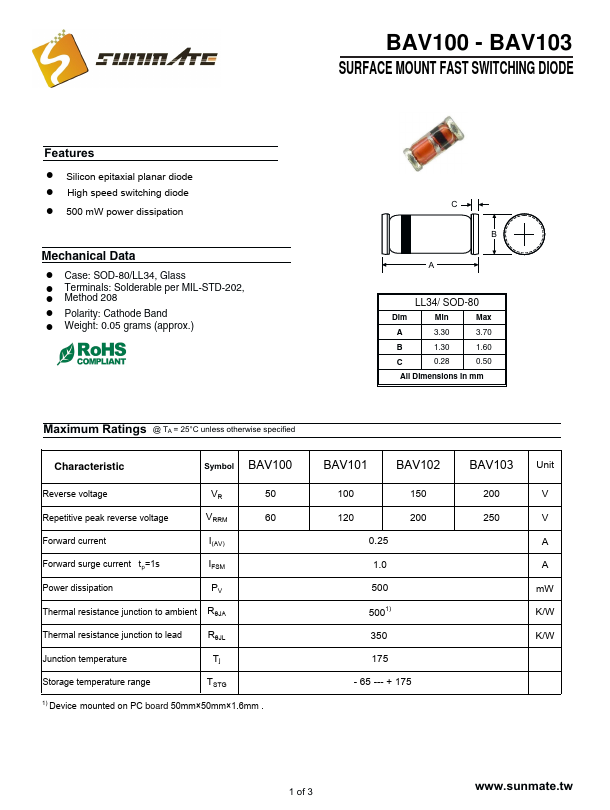

Features

* ! Silicon epitaxial planar diode ! High speed switching diode ! 500 mW power dissipation Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, ! Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.3
