BY133 - AXIAL LEADED RECTIFIER DIODE

Datasheet Summary

Features

  • ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 4 1 Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.34 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Character.

📥 Download Datasheet

Datasheet preview – BY133

Datasheet Details

Part number BY133
Manufacturer Sunmate
File Size 155.75 KB
Description AXIAL LEADED RECTIFIER DIODE
Datasheet download datasheet BY133 Datasheet

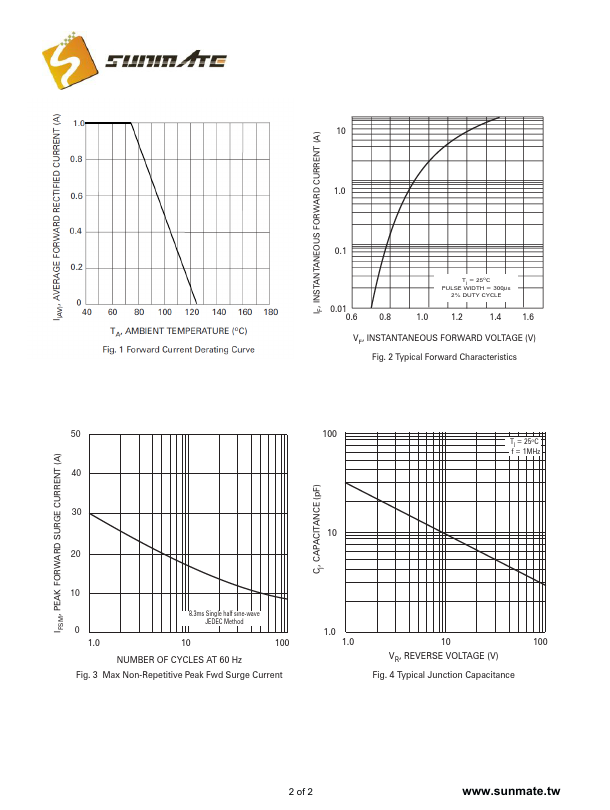

Additional preview pages of the BY133 datasheet.

📁 Similar Datasheet

  • BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY133 - Sillicon Rectifier (UPM)
  • BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • BY133 - 1 Amp Rectifier (MCC)
  • BY133 - 1.0A Miniature Rectifier (SEP ELECTRONIC)
  • BY133 - Silicon Rectifiers (Diotec Semiconductor)
  • BY133 - SILICON RECTIFIER DIODES (EIC)
  • BY133 - 1.0 SILICON RECTIFIER (SMC Diode)
  • BY133 - 1.0A HIGH VOLTAGE STANDARD DIODE (WON-TOP)
  • BY133 - General Purpose Silicon Rectifier (Luguang Electronic)
Other Datasheets by Sunmate
  • BY127M - AXIAL LEADED SILICON RECTIFIER DIODES
  • BY1600 - STANDARD RECOVERY RECTIFIER DIODES
  • BY1800 - STANDARD RECOVERY RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text

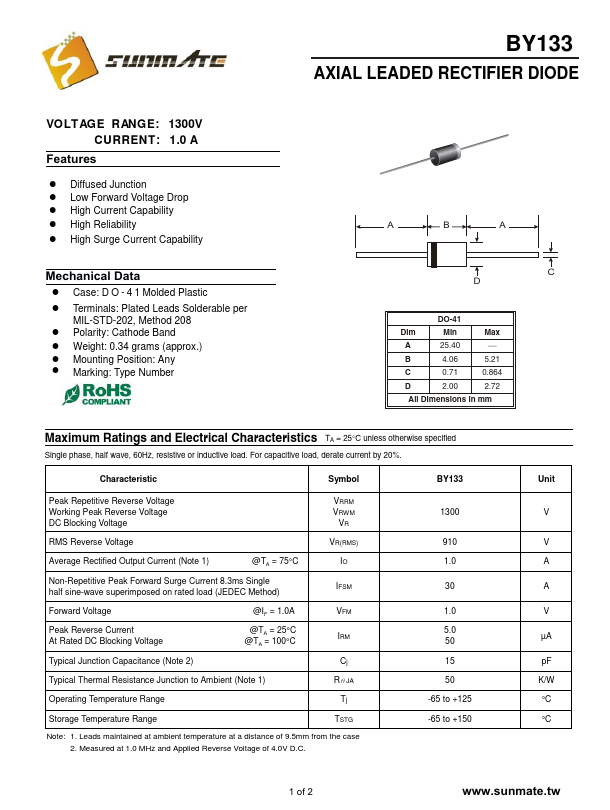

BY133 AXIAL LEADED RECTIFIER DIODE VOLTAGE RANGE: 1300V CURRENT: 1.0 A Features ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 4 1 Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.34 grams (approx.) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
