BYG21M, BYG21K - FAST SILICON MESA SMD RECTIFIER DIODE

Sunmate

BYG21M Description

BYG21K - BYG21M FAST SILICON MESA SMD RECTIFIER DIODE VOLTAGE RANGE: 8 00 - 1000V CURRENT: 1.5 A .

BYG21M Features

* D Glass passivated junction D Low reverse current D Soft recovery characteristics D Fast reverse recovery time D Good switching characteristics D Wave and reflow solderable Mechanical Data D Case: SMA(DO-214AC), Molded Plastic D Terminals: Solderable per MIL-STD-202, Method 208 D Polarity: Cathode B

📥 Download Datasheet

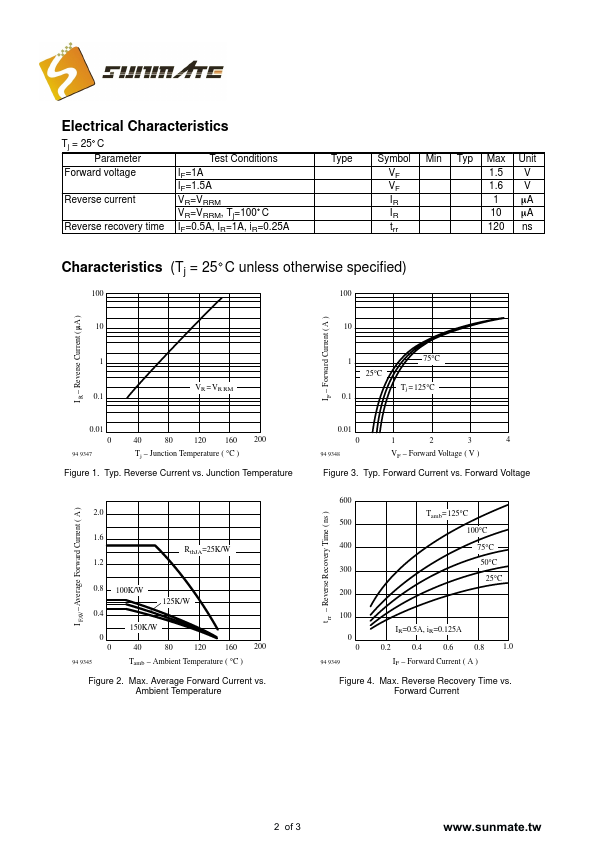

BYG21M Datasheet Preview — This datasheet PDF includes multiple part numbers: BYG21M, BYG21K. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: BYG21M, BYG21K
Manufacturer: Sunmate
File Size: 793.02 KB
Datasheet: BYG21K-Sunmate.pdf
Description: FAST SILICON MESA SMD RECTIFIER DIODE
Note: This datasheet PDF includes multiple part numbers: BYG21M, BYG21K.
Please refer to the document for exact specifications by model.
