BZG03C110, BZG03C3V9 - SURFACE MOUNT SILICON ZENER DIODES

Sunmate

📥 Download Datasheet

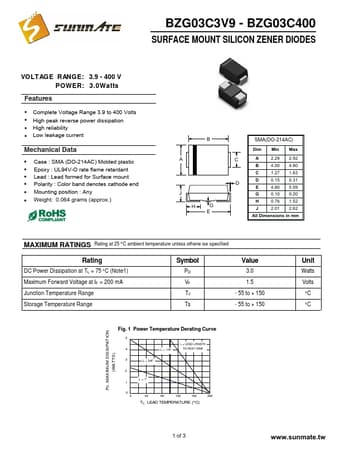

BZG03C110 Datasheet Preview — This datasheet PDF includes multiple part numbers: BZG03C110, BZG03C3V9. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BZG03C110, BZG03C3V9
Manufacturer	Sunmate
File Size	442.77 KB
Description	SURFACE MOUNT SILICON ZENER DIODES
Datasheet	BZG03C3V9-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: BZG03C110, BZG03C3V9. Please refer to the document for exact specifications by model.

BZG03C110 Product details

Features

Complete Voltage Range 3.9 to 400 Volts.
High peak reverse power dissipation.
High reliability.
Low leakage current Mechanical Data.
Case : SMA (DO-214AC) Molded plastic.
Epoxy : UL94V-O rate flame retardant.
Lead : Lead formed for Surface mount.
Polarity : Color band denotes cathode end.
Mounting position : Any.
Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D 0.15 0.31 E 4.80 5.5.
