BZG03C100-M, BZG03C10-M - Zener Diodes

Vishay

📥 Download Datasheet

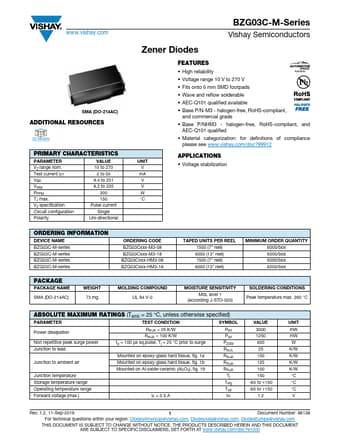

BZG03C100-M Datasheet Preview — This datasheet PDF includes multiple part numbers: BZG03C100-M, BZG03C10-M. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BZG03C100-M, BZG03C10-M
Manufacturer	Vishay ↗
File Size	101.76 KB
Description	Zener Diodes
Datasheet	BZG03C10-M-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: BZG03C100-M, BZG03C10-M. Please refer to the document for exact specifications by model.

BZG03C100-M Product details

Features

High reliability Available.
Voltage range 10 V to 270 V.
Fits onto 5 mm SMD footpads.
Wave and reflow solderable.
AEC-Q101 qualified available.
Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade.
Base P/NHM3 - halogen-free, RoHS-compliant, and AEC-Q101 qualified.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
