BZG03C11-M, BZG03C10-M, Zener Diodes

www.vishay.com SMA (DO-214AC) ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS PARAMETER VZ range nom.Test current IZT VBR VWM PPPM TJ.

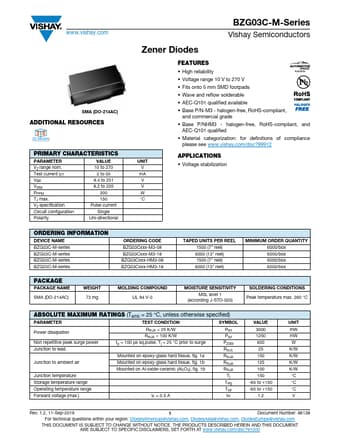

datasheet Preview Page 1 from Datasheet4u.com

BZG03C10-M-Vishay.pdf

BZG03C11-M Datasheet Preview — This datasheet PDF includes multiple part numbers: BZG03C11-M, BZG03C10-M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BZG03C11-M, BZG03C10-M

Manufacturer:

Vishay ↗

File Size:

101.76 KB

Description:

Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: BZG03C11-M, BZG03C10-M.
Please refer to the document for exact specifications by model.

Features

* High reliability Available
* Voltage range 10 V to 270 V
* Fits onto 5 mm SMD footpads
* Wave and reflow solderable
* AEC-Q101 qualified available
* Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade
* Base P/NHM3 - halo

Applications

* Voltage stabilization      ORDERING INFORMATION DEVICE NAME BZG03C-M-series BZG03C-M-series BZG03C-M-series BZG03C-M-series ORDERING CODE BZG03Cxxx-M3-08 BZG03Cxxx-M3-18 BZG03Cxxx-HM3-08 BZG03Cxxx-HM3-18 PACKAGE PACKAGE NAME SMA (DO-214AC) WEIGHT 73 mg MOLDING COMPOUND UL 94 V-0
