FFM205, FFM201 SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

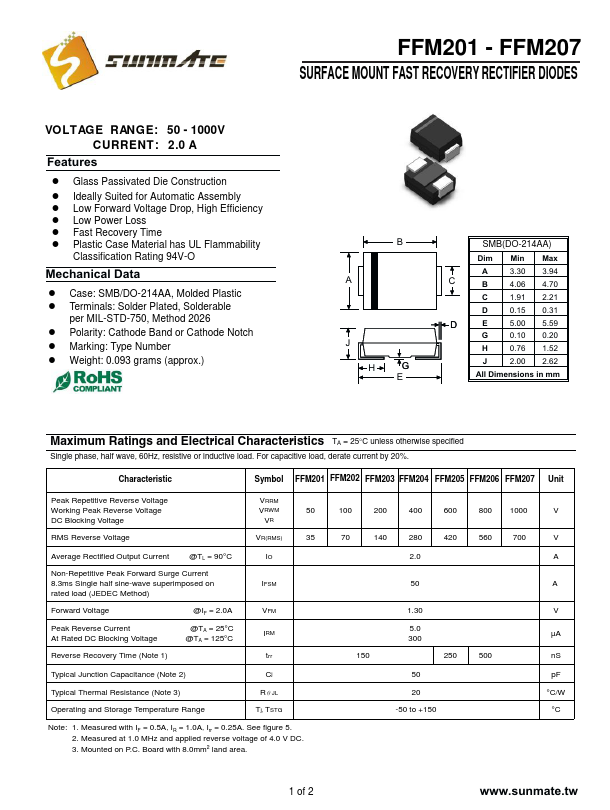

📥 Download Datasheet Datasheet Preview Page 1

Description

FFM201 - FFM207 SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FFM205, FFM201. Please refer to the document for exact specifications by model.

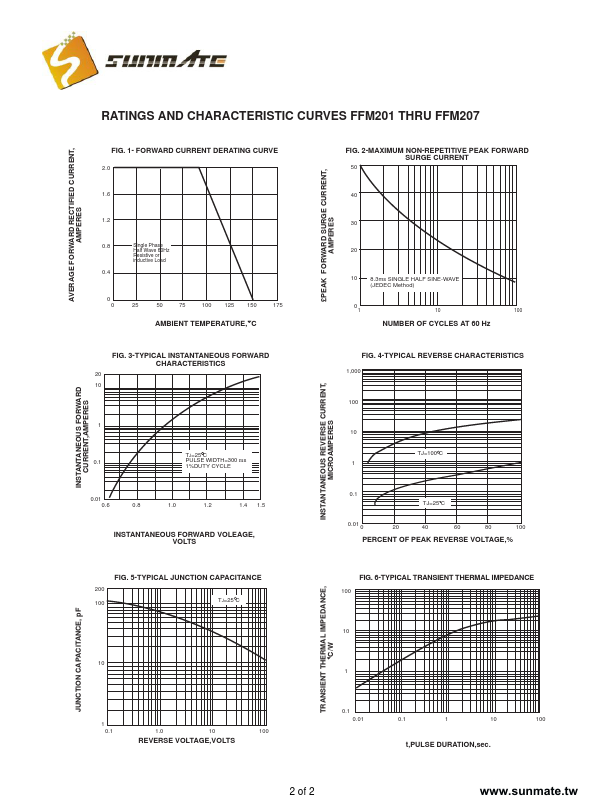

datasheet Preview Page 2

Datasheet Specifications

Part number
FFM205, FFM201
Manufacturer
Sunmate
File Size
105.52 KB
Datasheet
FFM201-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: FFM205, FFM201.
Please refer to the document for exact specifications by model.

Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability B Classification Rating 94V-O
