FR1A SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

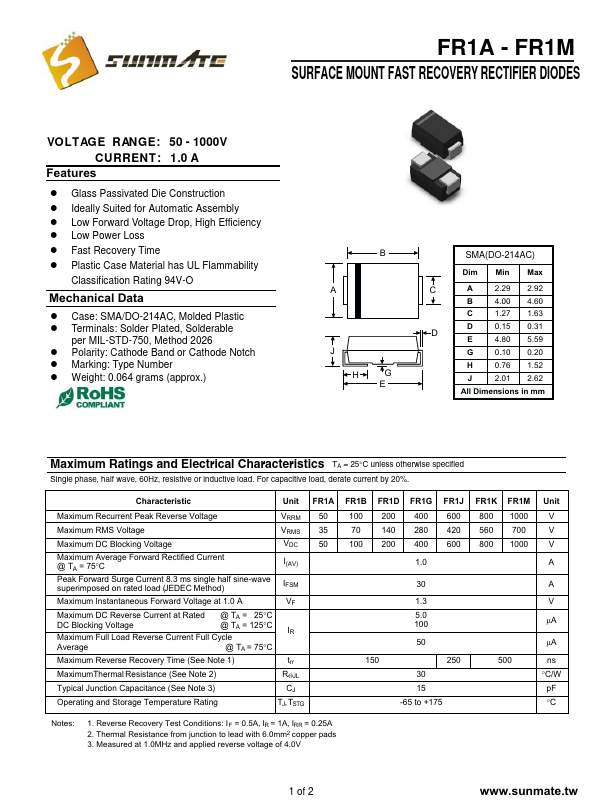

📥 Download Datasheet Datasheet Preview Page 1

Description

FR1A - FR1M SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A .

📥 Download Datasheet

Preview of FR1A PDF

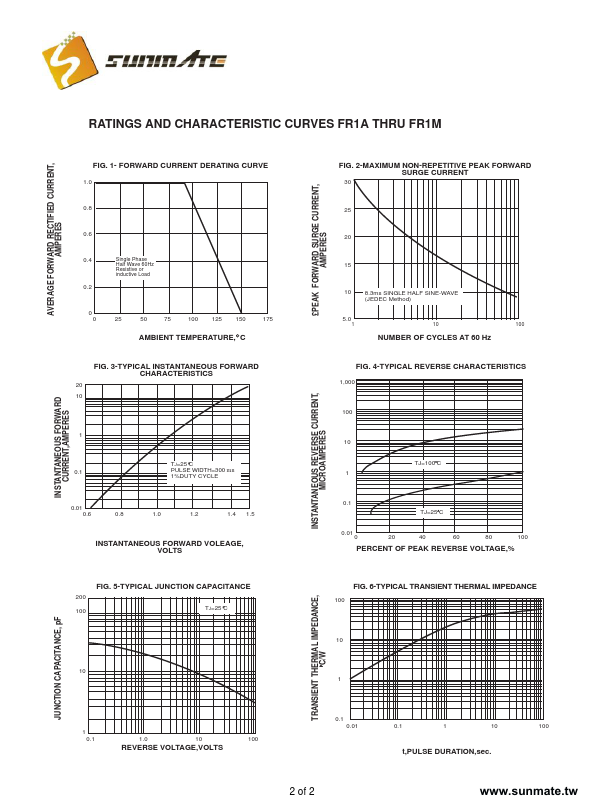

datasheet Preview Page 2

Datasheet Specifications

Part number
FR1A
Manufacturer
Sunmate
File Size
119.09 KB
Datasheet
FR1A-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Sold
