FR501 - FAST RECOVERY DIODE

Sunmate

📥 Download Datasheet

FR501 Datasheet Preview — Preview of FR501 PDF

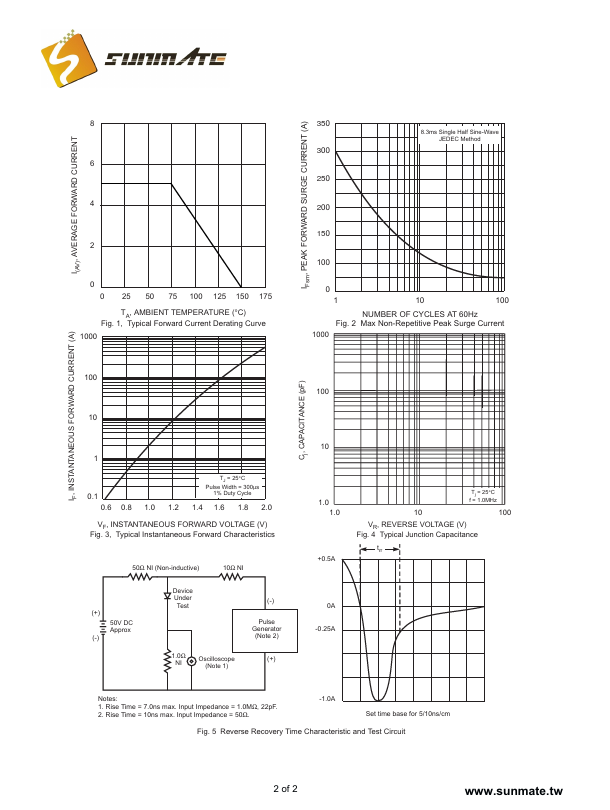

datasheet Preview Page 2

Datasheet Details

Part number	FR501
Manufacturer	Sunmate
File Size	480.54 KB
Description	FAST RECOVERY DIODE
Datasheet	FR501-Sunmate.pdf

FR501 Product details

Features

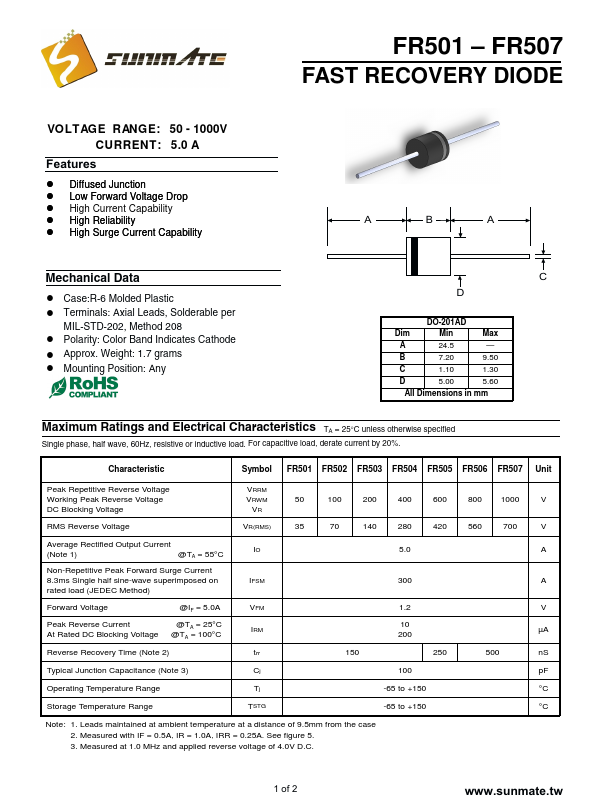

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability A B A Mechanical Data ! Case:R-6 Molded Plastic ! Terminals: Axial Leads, Solderable per MIL-STD-202, Method 208 ! Polarity: Color Band Indicates Cathode ! Approx. Weight: 1.7 grams ! Mounting Position: Any C D DO-201AD Dim Min Max A 245.45.
B 87.520 9.50 C 1.210 1.30 D 55..000 5.60 All Dimensions in mm Maximum Ratings and Electrical Characte.
