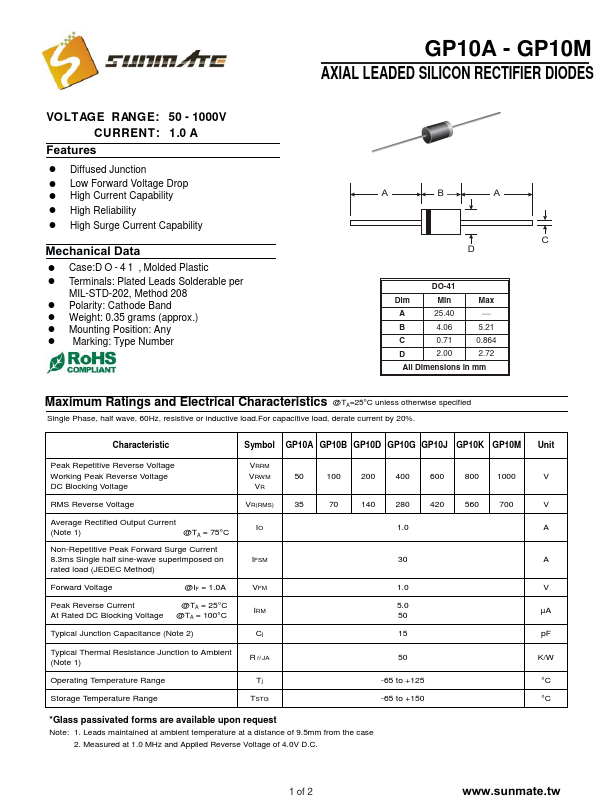

GP10D, GP10A - AXIAL LEADED SILICON RECTIFIER DIODES

Sunmate

Datasheet Details

Part number: GP10D, GP10A
Manufacturer: Sunmate
File Size: 136.08 KB
Datasheet: GP10A-Sunmate.pdf
Description: AXIAL LEADED SILICON RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: GP10D, GP10A.
Please refer to the document for exact specifications by model.

! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case:D O - 4 1 , Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.35 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Characte.
