GPP20B, GPP20A AXIAL LEADED SILICON RECTIFIER DIODES

Sunmate

Description

GPP20A - GPP20M AXIAL LEADED SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

📥 Download Datasheet

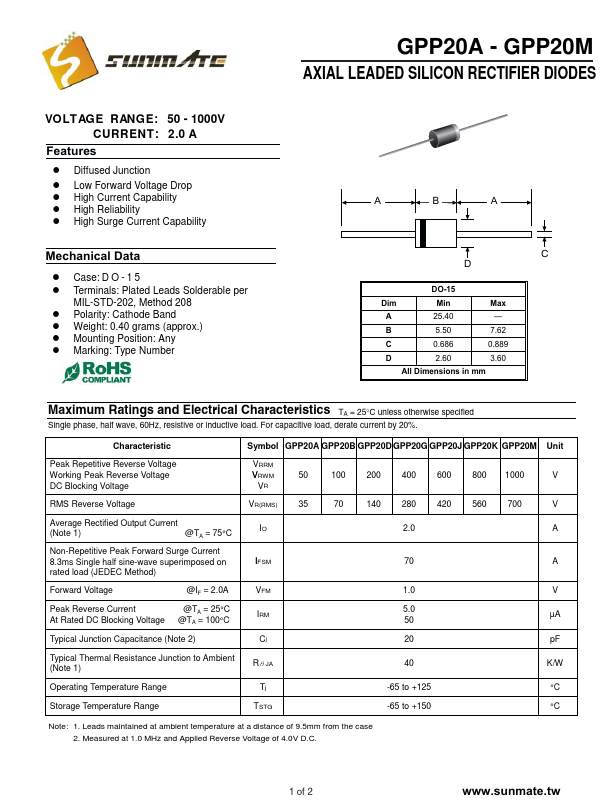

GPP20B Datasheet Preview — This datasheet PDF includes multiple part numbers: GPP20B, GPP20A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GPP20B, GPP20A
Manufacturer: Sunmate
File Size: 142.92 KB
Datasheet: GPP20A-Sunmate.pdf
Description: AXIAL LEADED SILICON RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: GPP20B, GPP20A.
Please refer to the document for exact specifications by model.

Features

* ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 1 5 ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.40 grams (approx. ) ! Mounting Position:
