GPP20G, GPP20A - Glass Passivated Junction Plastic Rectifier

GPP20G Description

GPP20A, GPP20B, GPP20D, GPP20G, GPP20J, GPP20K, GPP20M www.vishay.com Vishay General Semiconductor Glass Passivated Junction Plastic Rectifier DO-.

GPP20G Features

* Glass passivated chip junction
* Low forward voltage drop
* Low leakage current, typical IR less than 0.1 μA
* High forward surge capability
* Meets environmental standard MIL-S-19500
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material

GPP20G Applications

* For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application. MECHANICAL DATA Case: DO-15 (DO-204AC), molded epoxy over passivated chip Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Termi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GPP20G, GPP20A. Please refer to the document for exact specifications by model.

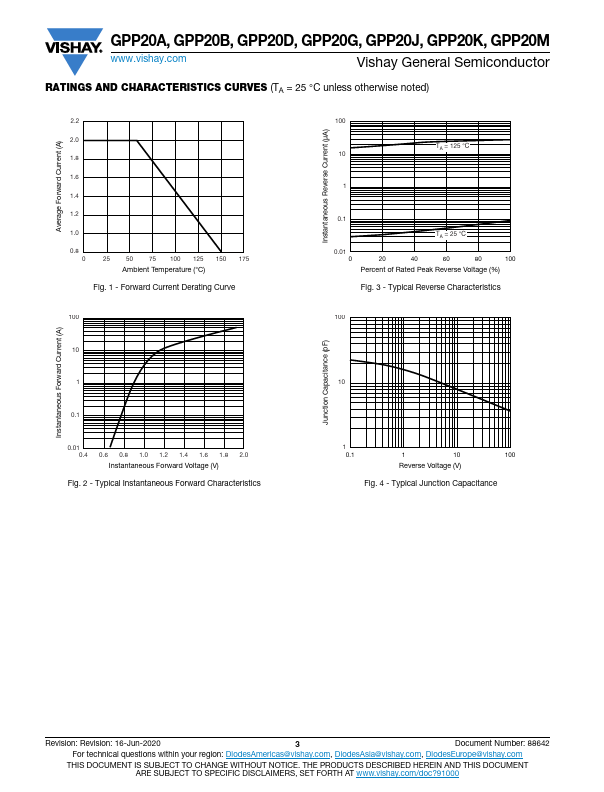

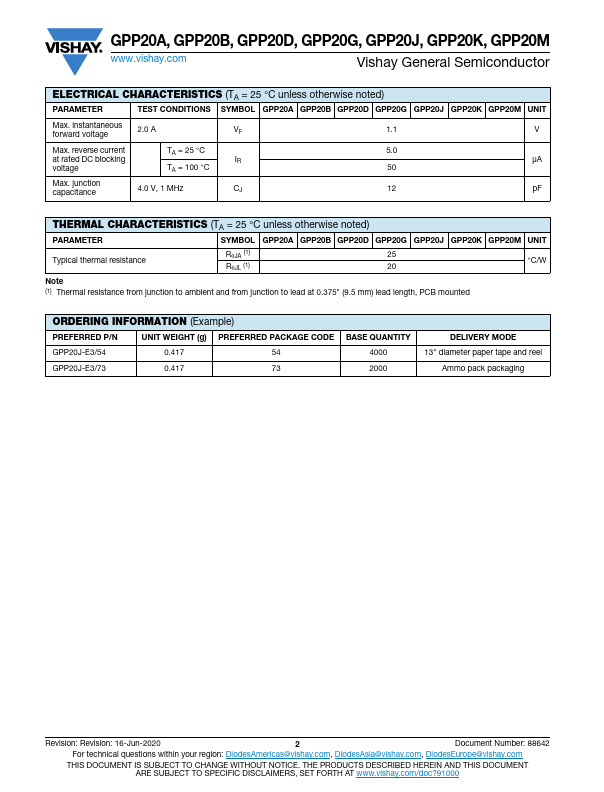

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GPP20G, GPP20A
Manufacturer
Vishay ↗
File Size
68.41 KB
Datasheet
GPP20A-Vishay.pdf
Description
Glass Passivated Junction Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: GPP20G, GPP20A.
Please refer to the document for exact specifications by model.
