GPP15A - AXIAL LEADED SILICON RECTIFIER DIODES

GPP15A Description

GPP15A - GPP15M AXIAL LEADED SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.5 A .

GPP15A Features

* ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 1 5 ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.40 grams (approx. ) ! Mounting Position:

📥 Download Datasheet

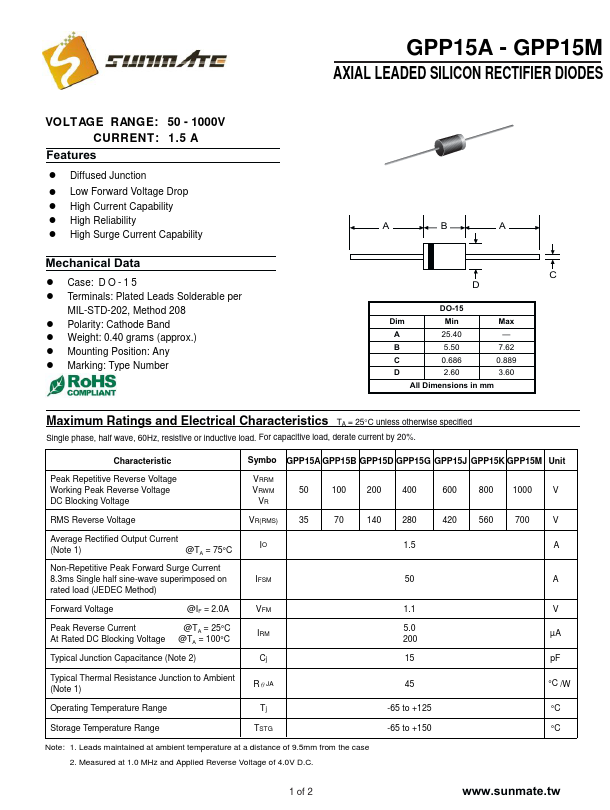

Preview of GPP15A PDF

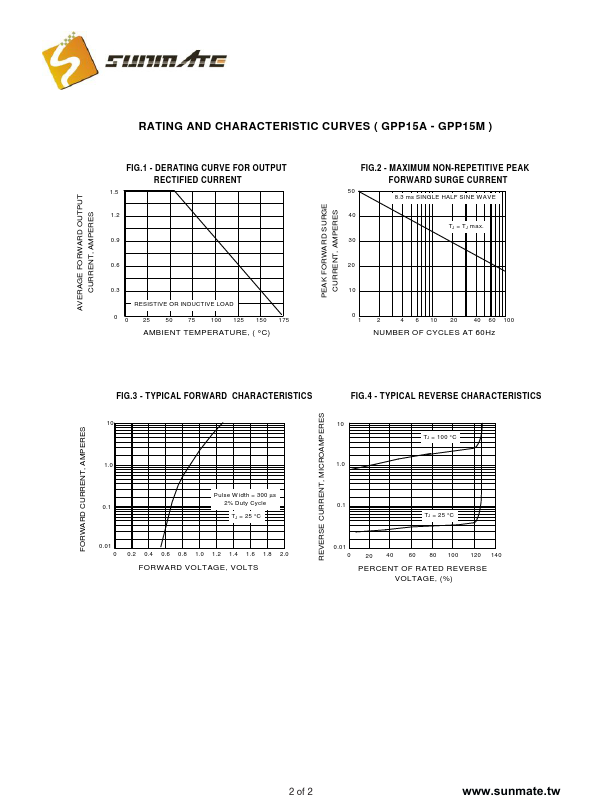

datasheet Preview Page 2

Datasheet Details

Part number
GPP15A
Manufacturer
Sunmate
File Size
116.99 KB
Datasheet
GPP15A-Sunmate.pdf
Description
AXIAL LEADED SILICON RECTIFIER DIODES
