GPP15M, GPP15A, Glass Passivated Junction Plastic Rectifiers

Not for New Design - End of Life - Last Available Purchase Date is 31-May-2011 GPP15A thru GPP15M Vishay General Semiconductor Glass Passivated Juncti.

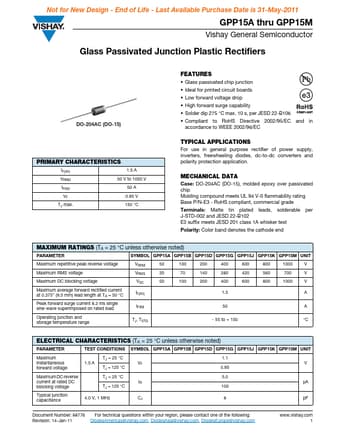

datasheet Preview Page 1 from Datasheet4u.com

GPP15A-Vishay.pdf

GPP15M Datasheet Preview — This datasheet PDF includes multiple part numbers: GPP15M, GPP15A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GPP15M, GPP15A

Manufacturer:

Vishay ↗

File Size:

72.29 KB

Description:

Glass Passivated Junction Plastic Rectifiers

Note:

This datasheet PDF includes multiple part numbers: GPP15M, GPP15A.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junction
* Ideal for printed circuit boards
* Low forward voltage drop
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

Applications

* For use in general purpose rectifier of power supply, inverters, freewheeling diodes, dc-to-dc converters and polarity protection application. MECHANICAL DATA Case: DO-204AC (DO-15), molded epoxy over passivated chip Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS compliant,
