GPP10G, GPP10A AXIAL LEADED SILICON RECTIFIER DIODES

Sunmate

Description

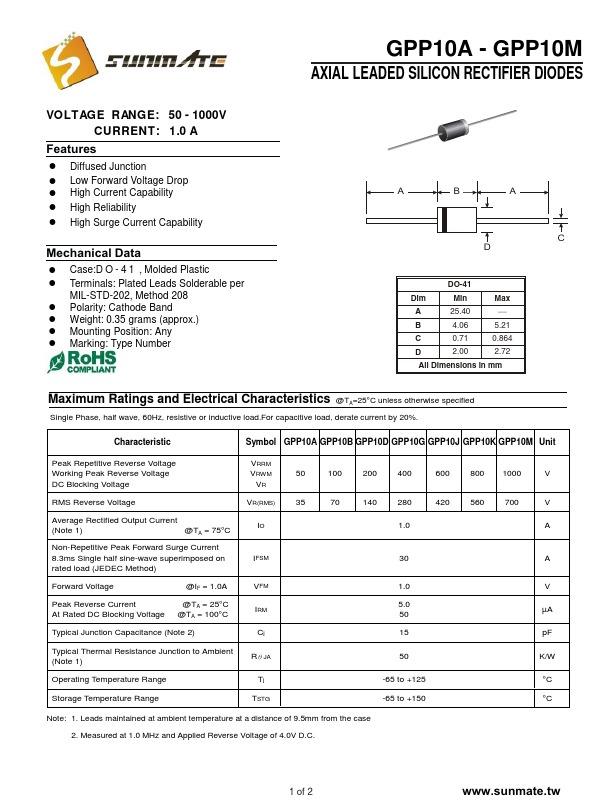

GPP10A - GPP10M AXIAL LEADED SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A .

📥 Download Datasheet

GPP10G Datasheet Preview — This datasheet PDF includes multiple part numbers: GPP10G, GPP10A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GPP10G, GPP10A
Manufacturer: Sunmate
File Size: 134.71 KB
Datasheet: GPP10A-Sunmate.pdf
Description: AXIAL LEADED SILICON RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: GPP10G, GPP10A.
Please refer to the document for exact specifications by model.

Features

* ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case:D O - 4 1 , Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.35 grams (approx. ) ! Mou
