GPP100K, GPP100J - Junction Plastic Rectifier

GPP100K Description

Not Available for New Designs GPP100D, GPP100G, GPP100J, GPP100K, GPP100M www.vishay.com Vishay General Semiconductor Glass Passivated Junction Pla.

GPP100K Features

* Glass passivated chip junction
* Low forward voltage drop
* Low leakage current, typical IR less than 0.2 μA
* High forward surge capability
* Meets environmental standard MIL-S-19500
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101

GPP100K Applications

* PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 10 A IR TJ max. Package Diode variations 10 A 200 V, 400 V, 600 V, 800 V, 1000 V 440 A 1.05 V 5.0 μA 175 °C P600 Single die For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application. ME

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GPP100K, GPP100J. Please refer to the document for exact specifications by model.

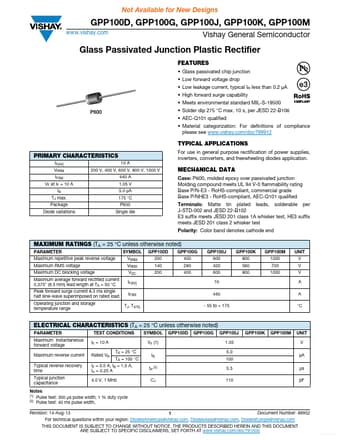

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GPP100K, GPP100J
Manufacturer
Vishay ↗
File Size
102.56 KB
Datasheet
GPP100J-Vishay.pdf
Description
Junction Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: GPP100K, GPP100J.
Please refer to the document for exact specifications by model.
