GPP15A - Glass Passivated Junction Plastic Rectifiers

GPP15A Description

Not for New Design - End of Life - Last Available Purchase Date is 31-May-2011 GPP15A thru GPP15M Vishay General Semiconductor Glass Passivated Juncti.

GPP15A Features

* Glass passivated chip junction
* Ideal for printed circuit boards
* Low forward voltage drop
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

GPP15A Applications

* For use in general purpose rectifier of power supply, inverters, freewheeling diodes, dc-to-dc converters and polarity protection application. MECHANICAL DATA Case: DO-204AC (DO-15), molded epoxy over passivated chip Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS compliant,

📥 Download Datasheet

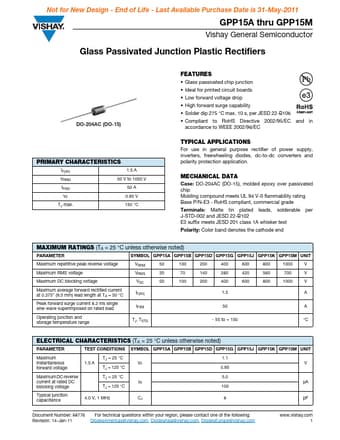

Preview of GPP15A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GPP15A
Manufacturer
Vishay ↗
File Size
72.29 KB
Datasheet
GPP15A-Vishay.pdf
Description
Glass Passivated Junction Plastic Rectifiers
