GPP30K, GPP30A - AXIAL LEADED SILICON RECTIFIER DIODES

GPP30K Description

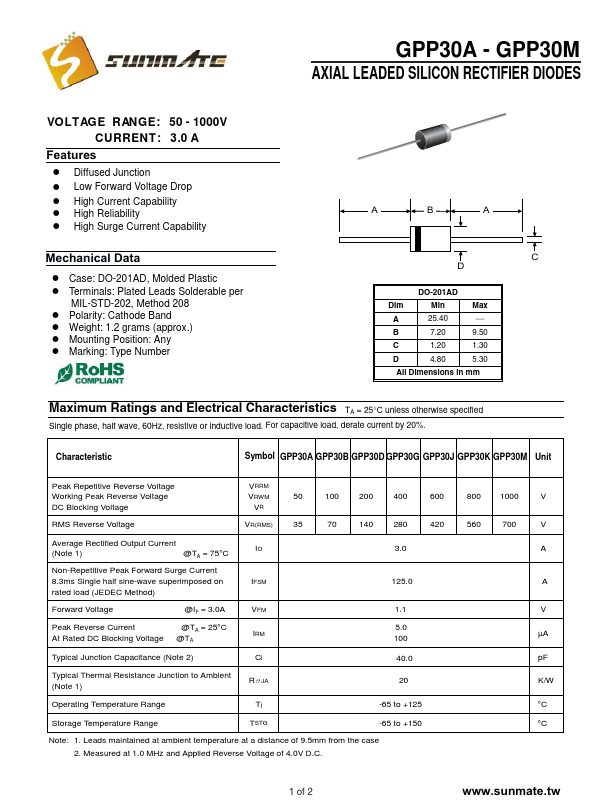

GPP30A - GPP30M AXIAL LEADED SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 3.0 A .

GPP30K Features

* ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx. ) ! Mount

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GPP30K, GPP30A. Please refer to the document for exact specifications by model.

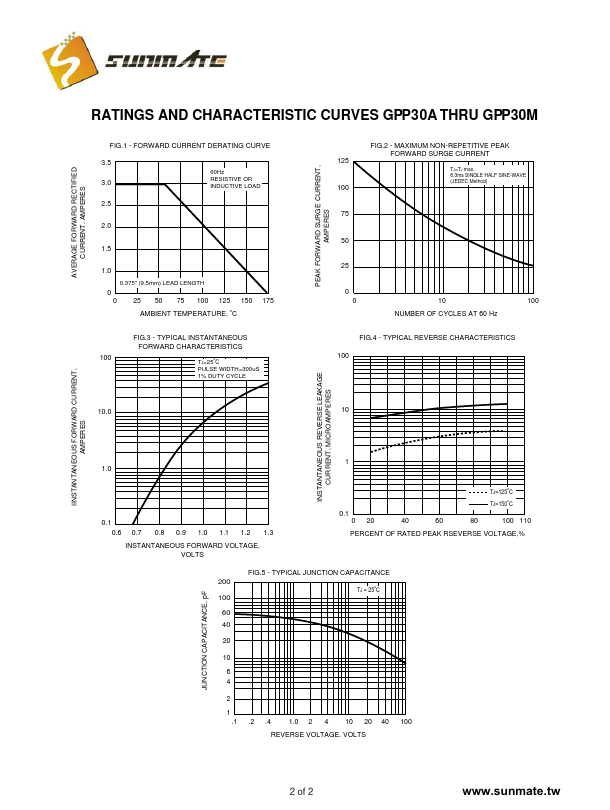

datasheet Preview Page 2

Datasheet Details

Part number
GPP30K, GPP30A
Manufacturer
Sunmate
File Size
118.53 KB
Datasheet
GPP30A-Sunmate.pdf
Description
AXIAL LEADED SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: GPP30K, GPP30A.
Please refer to the document for exact specifications by model.
