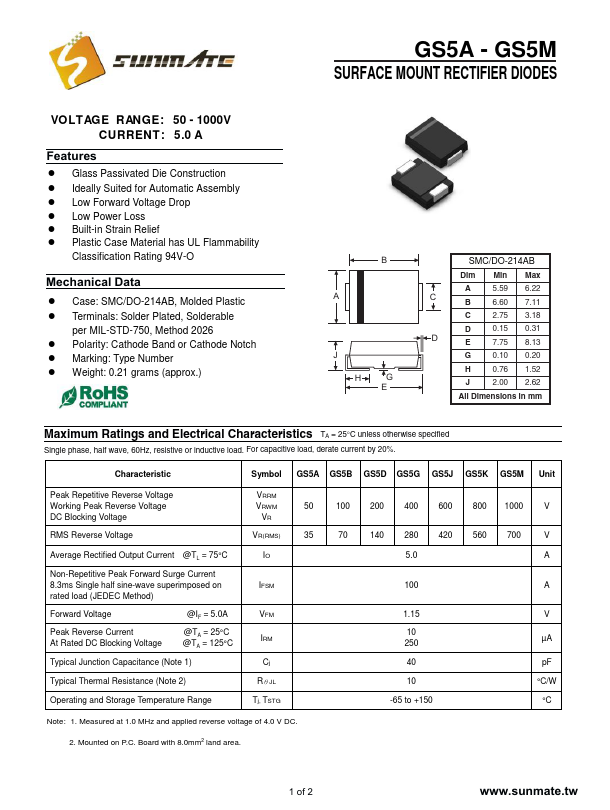

GS5A - GS5M
SURFACE MOUNT RECTIFIER DIODES
VOLTAGE RANGE: 50 - 1000V CURRENT: 5.0 A
Features
! Glass Passivated Die Construction
! Ideally Suited for Automatic Assembly
! Low Forward Voltage Drop
! Low Power Loss
! Built-in Strain Relief ! P lastic Case M a te ria l h asU L F lam m a bility
Classification Rating 94V-O
B
SMC/DO-214AB
Mechanical Data
! Case: SMC/DO-214AB, Molded Plastic ! Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx.)
A
J
H
G
E
Dim Min Max
A
5.59 6.22
C
B
6.60 7.11
C
2.75 3.18
D
0.15 0.31
D
E
7.75 8.
