GS5G, GS5A - SURFACE MOUNT RECTIFIER DIODES

Sunmate

📥 Download Datasheet

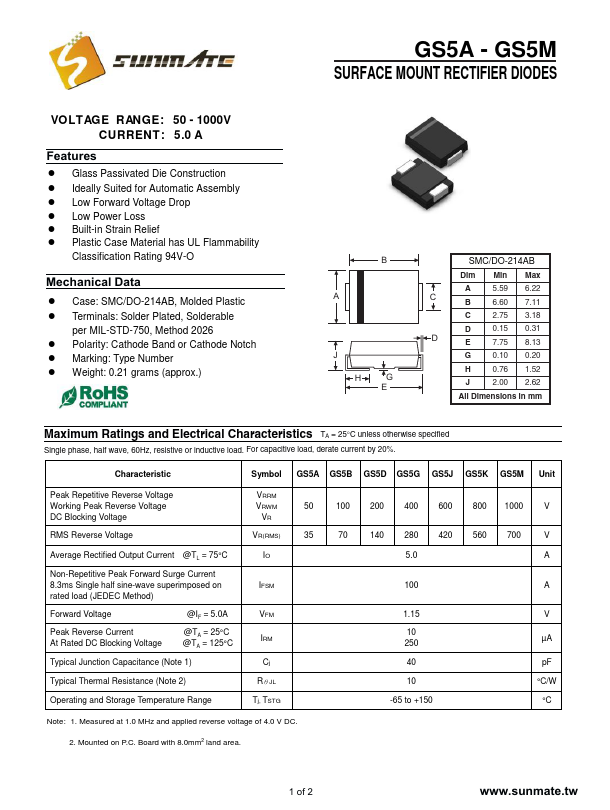

GS5G Datasheet Preview — This datasheet PDF includes multiple part numbers: GS5G, GS5A. Please refer to the document for exact specifications by model.

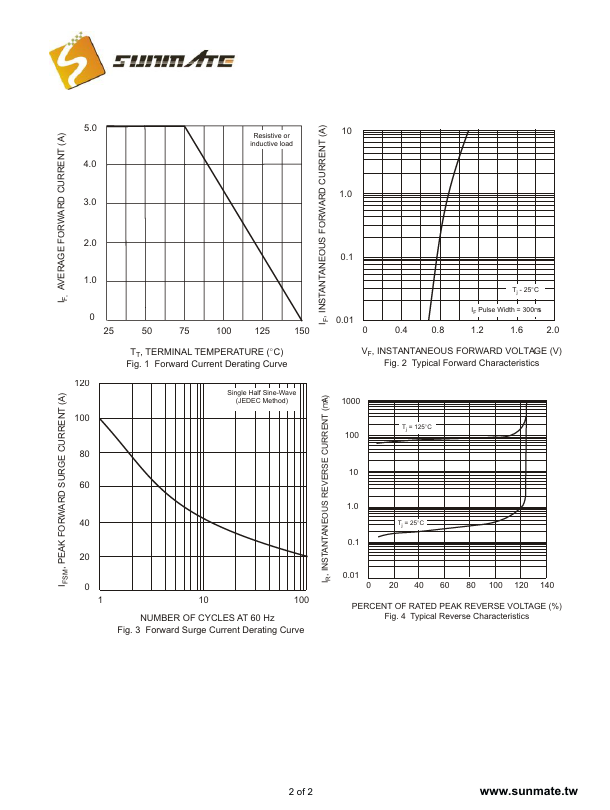

datasheet Preview Page 2

Datasheet Details

Part number: GS5G, GS5A
Manufacturer: Sunmate
File Size: 120.49 KB
Datasheet: GS5A-Sunmate.pdf
Description: SURFACE MOUNT RECTIFIER DIODES
Note: This datasheet PDF includes multiple part numbers: GS5G, GS5A.
Please refer to the document for exact specifications by model.

GS5G Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief ! P lastic Case M a te ria l h asU L F lam m a bility Classification Rating 94V-O B SMC/DO-214AB Mechanical Data ! Case: SMC/DO-214AB, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
