GS5GQ, GS5AQ Surface Mount General Purpose Rectifier

Yangzhou Yangjie

Description

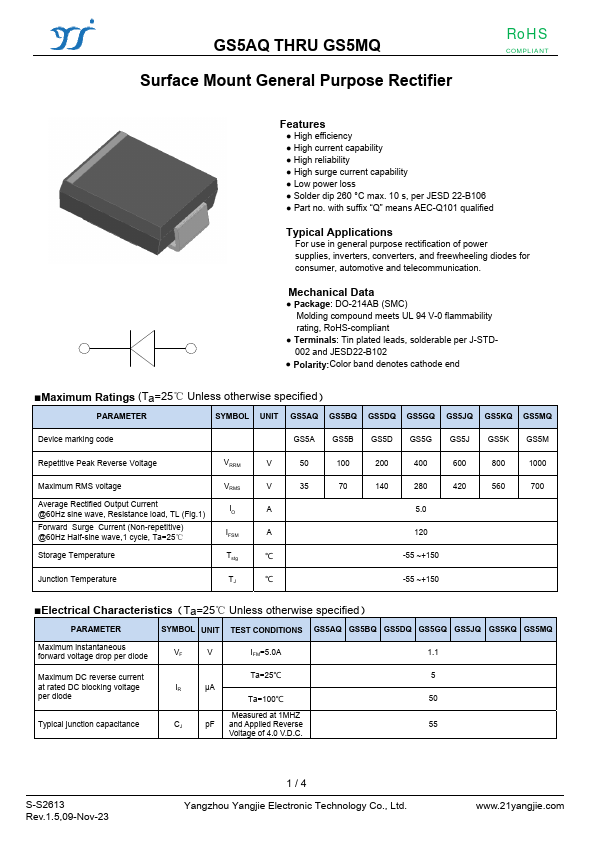

GS5AQ THRU GS5MQ Surface Mount General Purpose Rectifier RoHS COMPLIANT .

📥 Download Datasheet

GS5GQ Datasheet Preview — This datasheet PDF includes multiple part numbers: GS5GQ, GS5AQ. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GS5GQ, GS5AQ
Manufacturer: Yangzhou Yangjie
File Size: 244.83 KB
Datasheet: GS5AQ-YangzhouYangjie.pdf
Description: Surface Mount General Purpose Rectifier
Note: This datasheet PDF includes multiple part numbers: GS5GQ, GS5AQ.
Please refer to the document for exact specifications by model.

Features

* High efficiency
* High current capability
* High reliability
* High surge current capability
* Low power loss
* Solder dip 260 °C max. 10 s, per JESD 22-B106

Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive and telecommunication. Mechanical Data

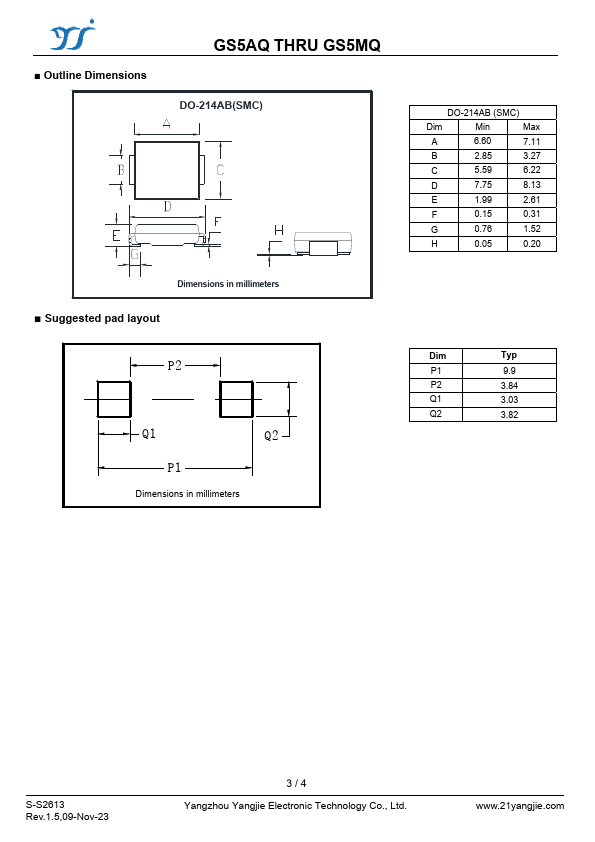

* Package: DO-214AB (SMC) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated le
