GS5AQ Surface Mount General Purpose Rectifier

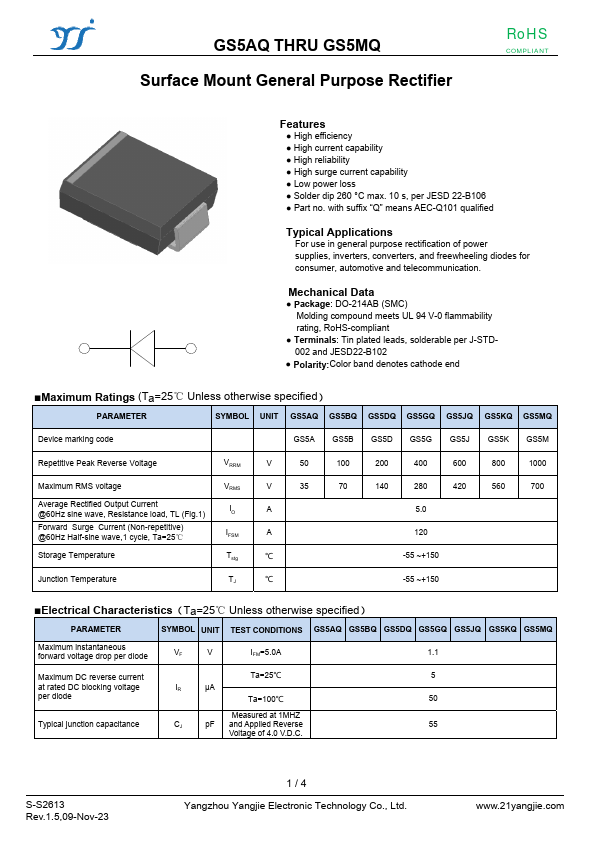

📥 Download Datasheet  Datasheet Preview Page 1

Description

GS5AQ THRU GS5MQ Surface Mount General Purpose Rectifier RoHS COMPLIANT .

📥 Download Datasheet

Preview of GS5AQ PDF

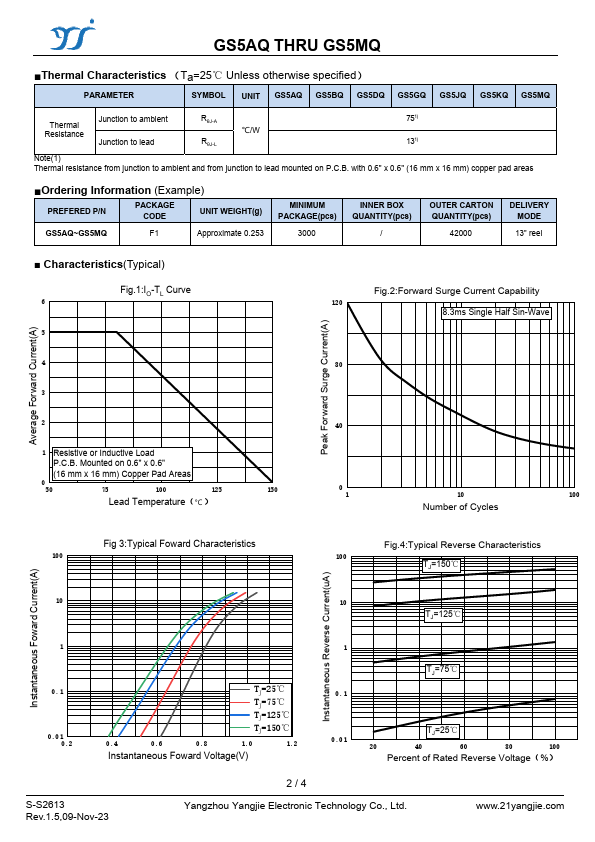

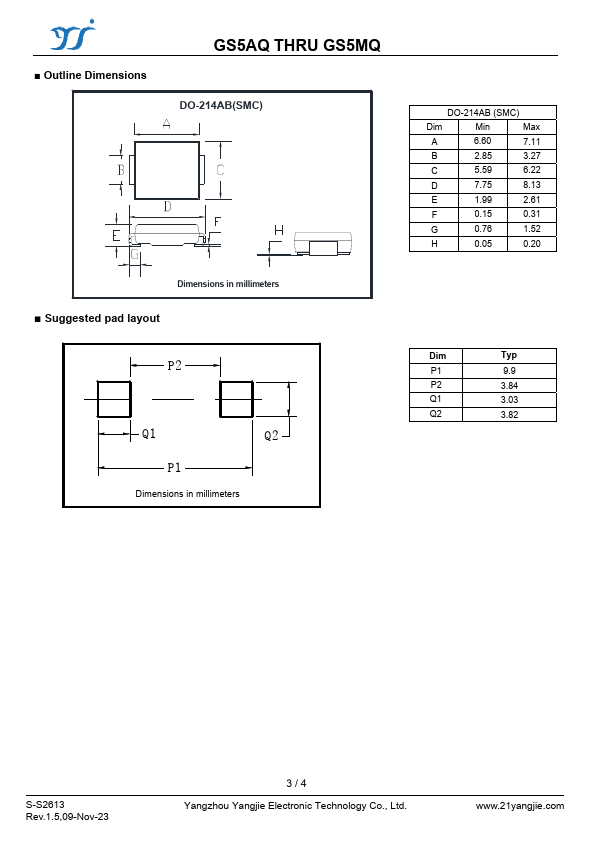

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GS5AQ
Manufacturer
Yangzhou Yangjie
File Size
244.83 KB
Datasheet
GS5AQ-YangzhouYangjie.pdf
Description
Surface Mount General Purpose Rectifier

Features

* High efficiency
* High current capability
* High reliability
* High surge current capability
* Low power loss
* Solder dip 260 °C max. 10 s, per JESD 22-B106

Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive and telecommunication. Mechanical Data
* Package: DO-214AB (SMC) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated le
