KBP005 - SILICON BRIDGE RECTIFIERS

Sunmate

📥 Download Datasheet

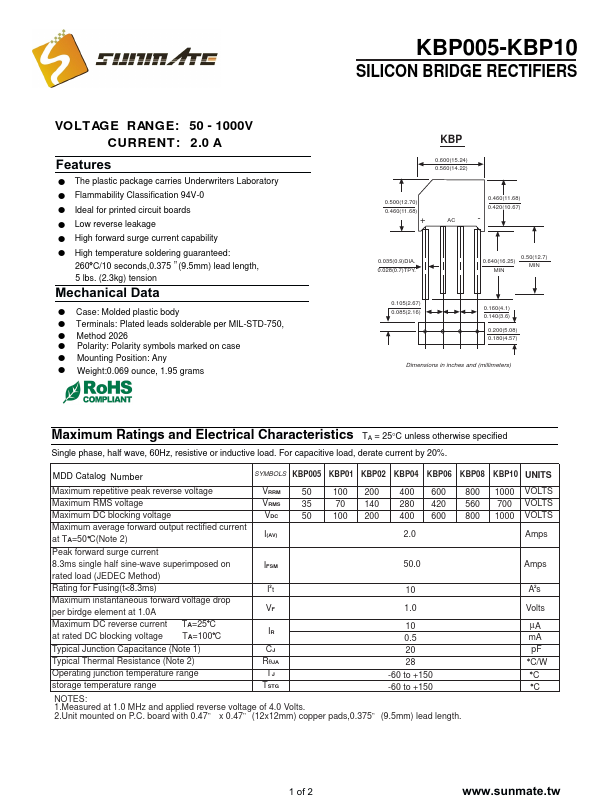

KBP005 Datasheet Preview — Preview of KBP005 PDF

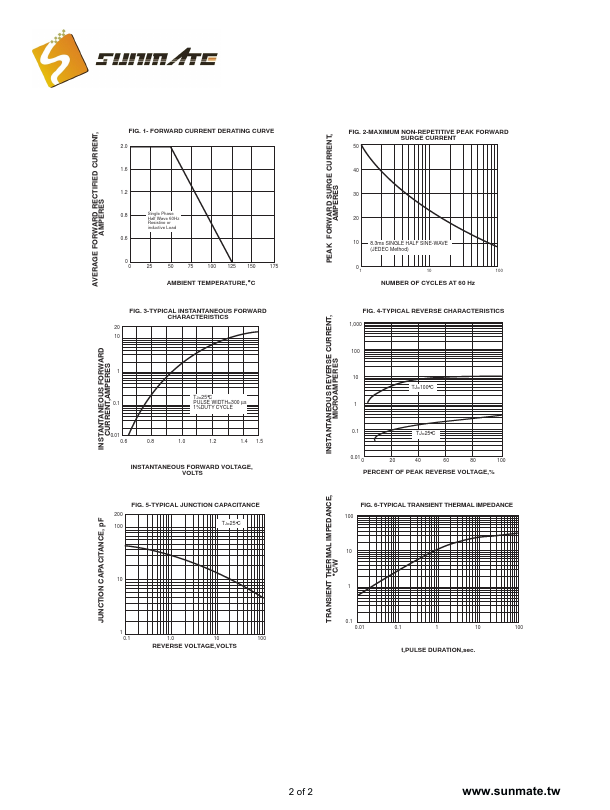

datasheet Preview Page 2

Datasheet Details

Part number	KBP005
Manufacturer	Sunmate
File Size	641.08 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	KBP005-Sunmate.pdf

KBP005 Product details

Features

! The plastic package carries Underwriters Laboratory ! Flammability Classification 94V-0 ! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,0.375 ” (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: Molded plastic body ! Terminals: Plated leads solderable per MIL-STD-750, ! Method 2026 ! Polarity: Polarity symbols marked on case ! Mounting Position: Any ! Weight:0.069 ounce,.
