KBPC1005 - SILICON BRIDGE RECTIFIERS

Sunmate

📥 Download Datasheet

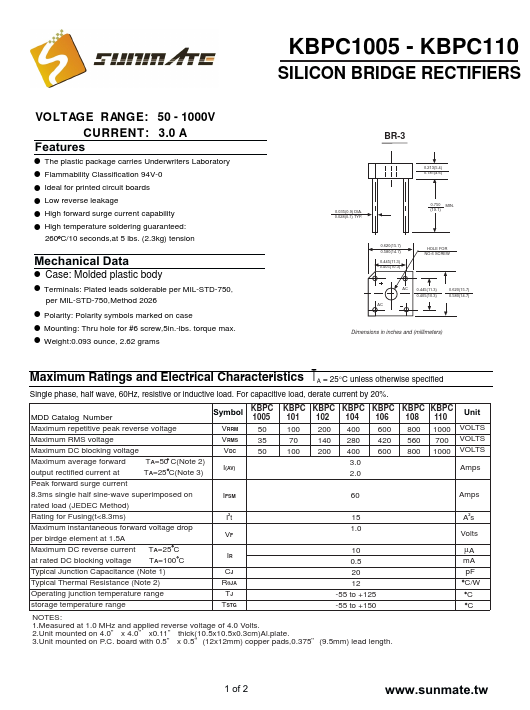

KBPC1005 Datasheet Preview — Preview of KBPC1005 PDF

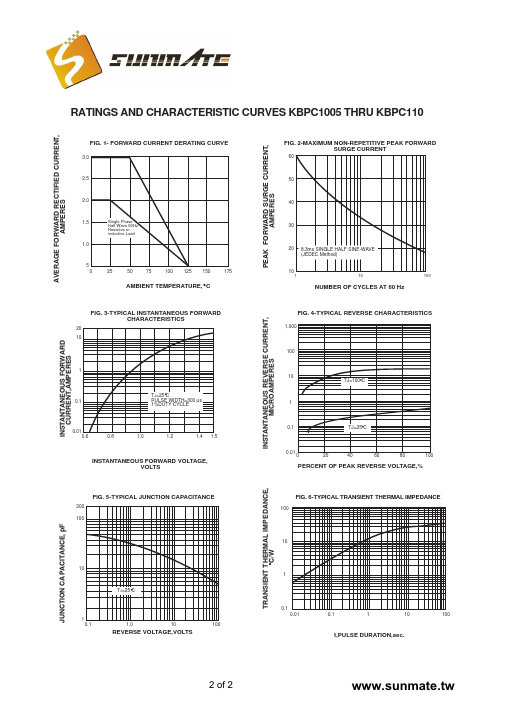

datasheet Preview Page 2

Datasheet Details

Part number	KBPC1005
Manufacturer	Sunmate
File Size	236.04 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	KBPC1005-Sunmate.pdf

KBPC1005 Product details

Features

! The plastic package carries Underwriters Laboratory ! Flammability Classification 94V-0 ! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,at 5 lbs. (2.3kg) tension Mechanical Data ! Case: Molded plastic body ! Terminals: Plated leads solderable per MIL-STD-750, per MIL-STD-750,Method 2026 ! Polarity: Polarity symbols marked on case ! Mounting: Thru hole for #6 screw,5in. -lbs. torque max. !.
